UGREEN NASync DXP8800 Plus
About the Product
- Intel Core i5‑1235U, 10-core processor for multitasking and demanding workloads
- 128GB SSD for OS and caching, with expandable storage options
- 8 SATA bays + 2 M.2 NVMe slots for high-capacity storage
- Dual 10GbE ports for ultra-fast network access
- 8K HDMI output for direct media preview
- RAID support: 0, 1, 5, 6, 10, JBOD
- Cross-platform access: Windows, macOS, Android, iOS, browser
- Suitable for media production, virtualization, and private cloud workflows

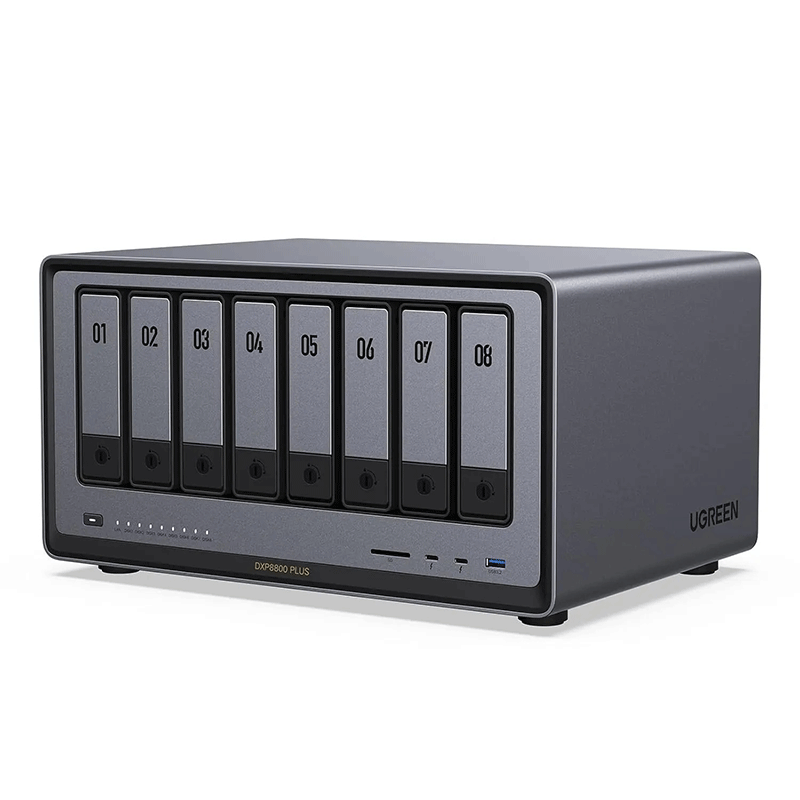

UGREEN NASync DXP8800 Plus 8-Bay Desktop NAS Intel i5 1235u 10-Core 128GB SSD 8x SATA 2x M.2 NVMe 10GbE 8K HDMI (35127B)
Description Overview
The UGREEN NASync DXP8800 Plus is a high-performance 8-bay desktop NAS powered by an Intel Core i5‑1235U 10-core processor with 128GB SSD, supporting 8 SATA drives and 2 M.2 NVMe slots. It features dual 10GbE networking, 8K HDMI output, and expandable storage, making it ideal for large‑scale data storage, backup, content creation, media streaming, and collaborative use in home, office, or small business environments. It combines powerful hardware with flexible storage and connectivity to serve as your own private cloud and file server.
Key Specifications
- Drive Bays: 8-Bay (SATA)
- CPU Model: 1235u
- Memory (RAM): 8GB DDR5
- Expandable RAM (Max): 64GB
- RAID: JBOD/Basic/0/1/5/6/10
- LAN Ports (RJ45): 2x 10GbE
- Thunderbolt™ 4 Ports: 2
- High-Speed USB Ports (Rear Panel): 2x USB-A (10Gb/s)
- SD Card Reader: SD 4.0
- Wi-Fi: NA
- Operating System: UGOS Pro
- CPU Brand & Architecture: Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads
- ODECC: Supported
- Flash Memory (System Disk): SSD 128GB
- M.2 SSD Drive Slots: 2
- Maximum Storage: 208TB (8x 24TB + 2x 8TB)
- PCIe Expansion: 1x PCIe x4
- High-Speed USB Ports (Front Panel): 2x Thunderbolt 4 (40Gb/s)
- USB 2.0 (Rear Panel): 2x USB-A (480Mb/s)
- HDMI: 8K
- Product Dimensions: L14.17×W10.16×H7.87 inches
Key Features
-
Powerful Processor: Intel Core i5‑1235U, 10 cores / 12 threads for high-performance multitasking.
-
Fast System Storage: 128GB SSD for the operating system and caching.
-
Expandable Storage: 8x SATA bays + 2x M.2 NVMe slots for HDDs/SSDs.
- RAM: Comes with DDR5 memory, expandable for demanding workloads.
-
High-Speed Networking: Dual 10GbE ports for ultra-fast file transfers.
-
8K HDMI Output: Directly connect to a display for media preview or presentations.
-
Memory Expandable: Supports DDR5 RAM for improved performance and multitasking.
-
RAID Support: RAID 0, 1, 5, 6, 10, JBOD, and basic modes for data protection and performance.
-
Cross-Platform Access: Compatible with Windows, macOS, Android, iOS, and browsers.
-
Versatile Connectivity: USB ports and SD card reader for fast data import/export, and 8K HDMI output.
-
Operating System: UGOS Pro for file management, backups, media streaming, and private cloud functionality.
- Ideal for Professionals: Perfect for media editing, backups, virtualization, and private cloud storage.
Ideal Use Cases
-
Professional Media Production
-
Video editors, photographers, and content creators can store, access, and edit large media files with fast SSD caching and 10GbE networking.
-
Supports 8K HDMI output for direct preview on high-resolution displays.
-
-
Small Office / Team Storage
-
Centralized file storage and collaboration for multiple users.
-
High-speed network ensures smooth access for large files and simultaneous tasks.
-
-
Private Cloud / Backup Solution
-
Secure, centralized data storage with RAID protection.
-
Remote access via mobile, desktop, or browser.
-
-
Virtualization & Applications
-
Can host virtual machines or run Docker containers for development, testing, or business apps.
-
-
Home Media Server
-
Stream movies, music, and photos to multiple devices.
-
Ideal for Plex, Emby, or similar media server setups.
-
-
High-Capacity Storage
-
Combine HDDs and NVMe SSDs for large, fast, and flexible storage pools.
-
