UGREEN NASync DXP6800 Pro
About the Product
- Intel Core i5‑1235U (10-core, 12-thread) processor for fast multitasking
- 8 GB DDR5 RAM (expandable) and 128 GB SSD for OS and caching
- 6 SATA bays + 2 M.2 NVMe slots for flexible, high-capacity storage
- Dual 10GbE ports and 2× Thunderbolt 4 for ultra-fast network and direct workstation connectivity
- 8K HDMI output for direct media playback
- RAID support (0/1/5/6/10/JBOD) for data protection and performance
- UGOS Pro OS with cross-platform access and media management

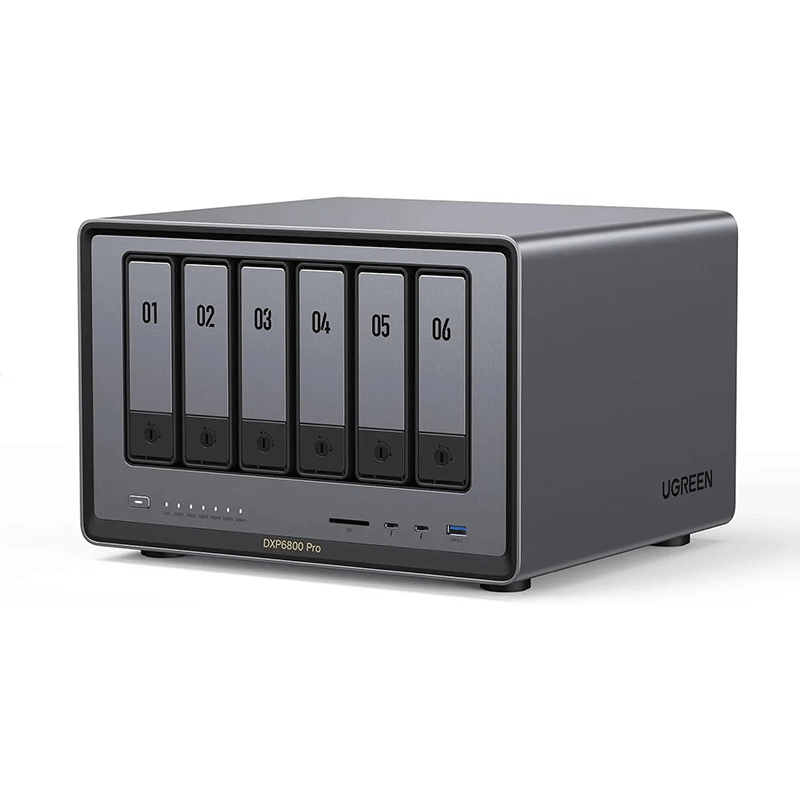

UGREEN NASync DXP6800 Pro 6-Bay Desktop NAS Intel i5 1235u 10-Core 8GB DDR5 128G SSD 10GbE M.2 NVMe 8K HDMI TBT4 (25899B)
Description Overview
The UGREEN NASync DXP6800 Pro is a high-performance 6-bay desktop NAS powered by an Intel Core i5‑1235U (10-core) CPU, 8 GB DDR5 RAM, and 128 GB SSD. It features dual 10GbE ports, Thunderbolt 4, M.2 NVMe slots, and 8K HDMI output, making it ideal for fast, high-capacity storage, media streaming, and professional workflows. Runs on UGOS Pro OS for easy management and cross-platform access.
Key Specifications:
- Drive Bays: 6-Bay (SATA)
- CPU Model: 1235u
- Memory (RAM): 8GB DDR5
- Expandable RAM (Max): 64GB
- SATA Drive Bays: 6
- RAID: JBOD/Basic/0/1/5/6/10
- LAN Ports (RJ45): 2x 10GbE
- Thunderbolt™ 4 Ports: 2
- High-Speed USB Ports (Rear Panel): 2x USB-A (10Gb/s)
- SD Card Reader: SD 4.0
- Wi-Fi- NA
- Operating System: UGOS Pro
- CPU Brand & Architecture: Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads
- ODECC: Supported
- Flash Memory (System Disk): SSD 128GB
- M.2 SSD Drive Slots: 2
- Maximum Storage: 160TB (6x 24TB + 2x 8TB)
- PCIe Expansion: 1x PCIe x4
- High-Speed USB Ports (Front Panel): 2x Thunderbolt 4 (40Gb/s)
- USB 2.0 (Rear Panel): 2x USB-A (480Mb/s)
- HDMI: 8K
- Product Dimensions: L11.54×W10.16×H7.87 inches
Key Features
- UGREEN NASync is widely compatible with third-party hard drives, including those from Western Digital, Seagate, Toshiba, and more. Please check our Compatibility List for full details.
- Following a recent firmware update, the NASync UGOS Pro operating system is now additionally available in French, Portuguese, Spanish and Italian!
- Dual 10GbE Network Ports: Two 10GbE high-speed network ports that can be aggregated into 20G bandwidth for download speeds of up to 2500MB/s.
- 12th Gen 10-core Intel® Core™ Processor: With a 12th Gen, 10-core 12-thread Intel® Core™ i5 Processor, processing performance is improved by leaps and bounds compared to previous processors.
- 6-Bay, 196TB Massive Data Storage: Equipped with six SATA and two M.2 NVMe drive bays, the NASync DXP6800 Pro has a maximum storage capacity of up to 196TB. And supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels. Store thousands of HD movies, pictures, and documents, Making NASync a movie library, photo album, and file storage space all in one.
- One, All-Inclusive App: Rather than downloading individual applications for specific functions, the NAS App incorporates these functions into one place. Access Storage Manager, Files, Photos and more, all from one convenient location.
- Expandable 8GB DDR5 Memory: 8GB DDR5 4800MHz provide the latest in processing speeds and improved software and system performance.
- AI Photo Album: Automatically organizes your photos by recognizing faces, scenes, objects, and locations. It can also instantly remove duplicates, freeing up storage space and saving you time.
Ideal Use Cases
-
Creative Workflows & Video Editing – Smooth handling of 4K/8K video, real-time editing, and fast transfers via Thunderbolt 4.
-
Small Business Storage – Centralized high-speed storage with RAID protection for multi-user access.
-
Home Media Server – Stream movies, photos, and music directly via 8K HDMI or network.
-
Backup & Data Protection – Secure backups from multiple devices with RAID redundancy.
-
Advanced Expansion – Supports NVMe cache, AI-powered media management, and PCIe expansion for future upgrades.
