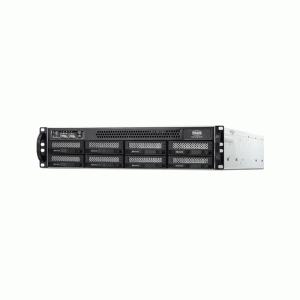

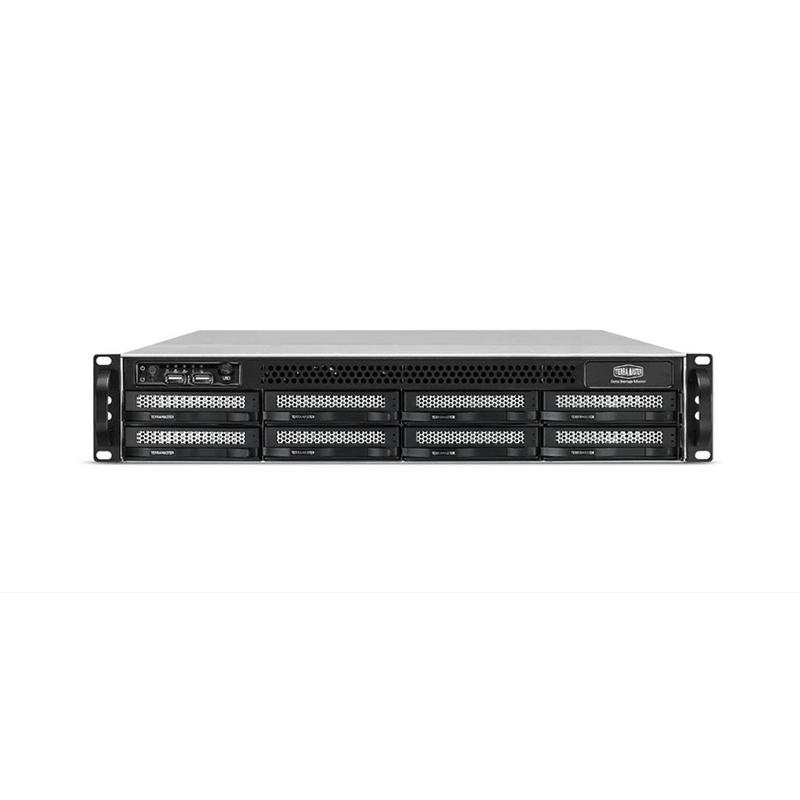

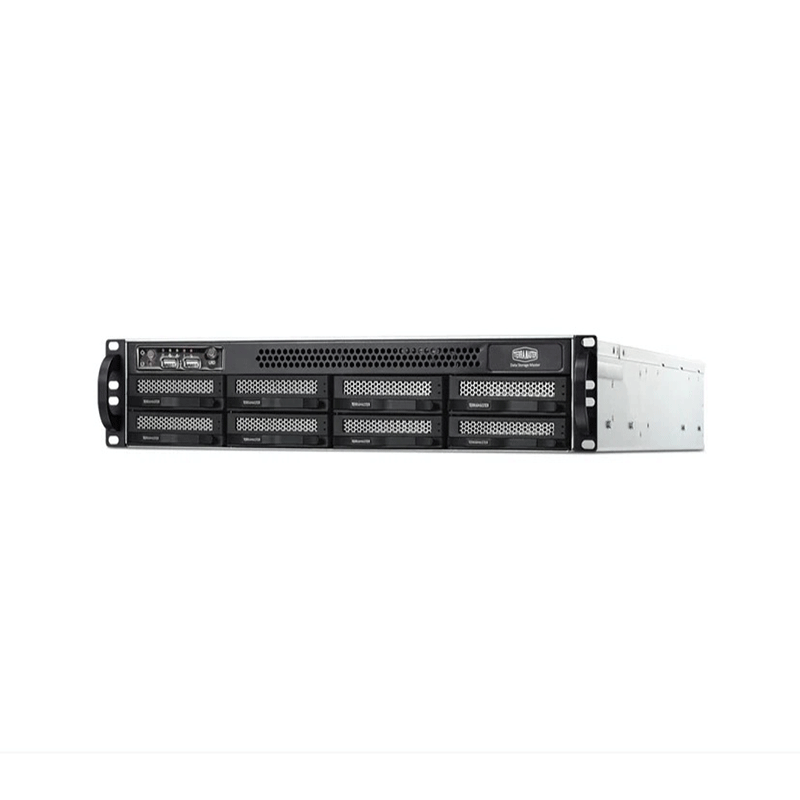

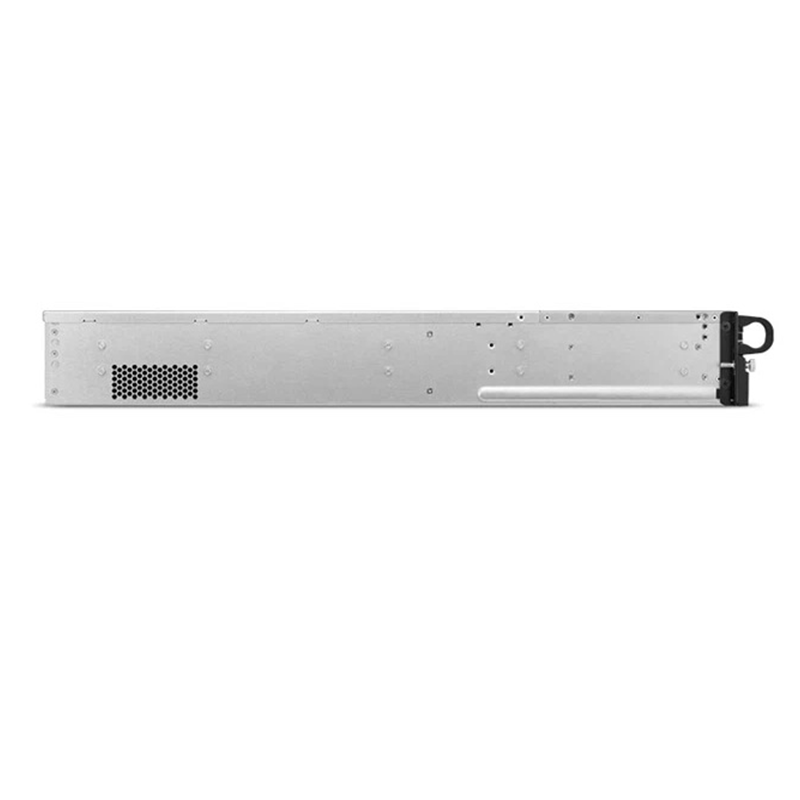

TerraMaster U8-722-2224 8-Bay Enterprise NAS Enclosure
Description
A rack-mountable 8-bay NAS server suited for enterprise virtualization, storage consolidation, and heavy workloads. It lets you populate HDDs/SSDs for large centralized storage, with expandable memory and network options for scalable performance.
TerraMaster U8-722-2224 — Specifications
General
-
Enterprise-class 8-bay rack NAS storage server designed for data-intensive and virtualization environments.
Processor
-
Intel Xeon E-2224 / E-2224G quad-core CPU (3.5 GHz base, up to ~3.8 GHz).
-
Hardware encryption engine supported.
Memory
-
8 GB DDR4 RAM installed (non-ECC/optional ECC depending on configuration).
-
4 memory slots, expandable up to 64 GB total.
Storage Bays
-
8 × 3.5″/2.5″ SATA drive bays (HDD or SSD).
-
1 × M.2 2280 NVMe slot (SSD for cache/boot).
-
Maximum raw capacity ~160 TB (20 TB × 8).
-
Hot-swap drive support.
RAID Support
-
RAID levels: Single, JBOD, RAID 0, 1, 5, 6, 10, TRAID / TRAID+.
Networking
-
4 × Gigabit RJ-45 Ethernet ports with Link Aggregation support.
Expansion Slots
-
2 × PCIe 3.0 ×8 slots and 1 × PCIe 3.0 ×16 slot (e.g., for 10 GbE NICs or RAID cards).

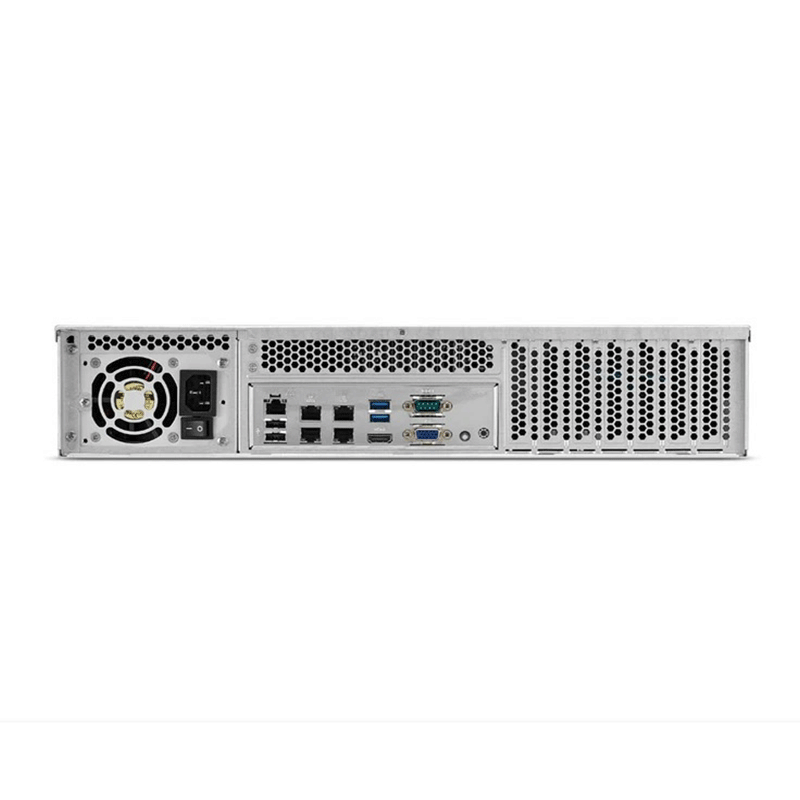

Ports & Interfaces
-
4 × USB 2.0 ports.
-
2 × USB 3.0 ports.
-
1 × HDMI port and 1 × VGA port for local display.
-
1 × COM port (console/management).
Performance
-
Can deliver ~3000 MB/s sequential throughput and 500,000+ IOPS (with optimized setup).
Physical / Power
-
Rack mount form factor.
-
Power supply: ~550 W.
-
Weight and dimensions vary slightly by configuration.
Operating System & Software
- Flexible TOS enterprise OS with a graphical UI for storage, user, and rights management.
-
Supports industry file services — SMB, AFP, NFS, iSCSI, FTP — for seamless sharing across Windows, macOS, and Linux systems.
-
SSD cache technology to accelerate access to frequently used data (improves performance).
Advantages
High Scalability
-
Memory and PCIe expansion slots let you adapt the system as your needs grow — ideal for virtualization, heavy file services, and enterprise data.
Reliability & Redundancy
-
Link Aggregation and multiple network interfaces help prevent interruptions.
-
RAID options protect against disk failures and data loss, while hot‑swap bays keep uptime high.
Versatile Deployment
-
Can serve as a file server, backup repository, virtualization storage, SMB services, and more, thanks to rich software support.
Enterprise‑Ready Software Tools
-
Remote access via TNAS.online, centralized backup options, cluster support, virtual machine hosting, and app ecosystem extend functionality.
Ease of Use
-
Intuitive interface and familiar file‑management features make administration accessible even for teams without deep IT expertise.
Application
Core Storage & File Services
-
Centralized file storage and sharing for Windows, macOS, Linux, and mobile devices.
-
Enterprise file server (SMB/CIFS, NFS, AFP, FTP).
-
iSCSI target / SAN for block-level storage in virtualization environments.
-
Data backup server for PCs, Macs, servers, and external USB drives.
-
Cloud backup and remote replication between NAS or cloud storage.
Business & Enterprise Applications
-
Virtualization support — store and serve virtual machine images.
-
Web server hosting internal or public websites.
-
Email server for small-to-medium business environments.
-
VPN server for secure remote access.
-
DHCP/DNS server for network infrastructure.
-
Rsync remote server for site-to-site backup replication.
Advanced & Specialized Uses
-
Docker and container hosting for apps and services.
-
Virtual machine hosting (Windows/Linux VMs on NAS).
-
Multimedia server (Plex/Emby) for streaming video/audio.
-
Antivirus and utility applications (e.g., ClamAV, search tools).
-
Snapshot & rollback for point-in-time data recovery.
Remote & Hybrid Operations
-
Remote access and management via TNAS.online.
-
Hybrid cloud integration for syncing local NAS with cloud storage.
