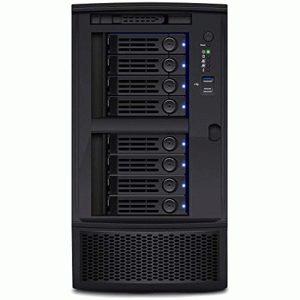

IX Systems TrueNAS Mini XL+

Storage & Drive Bays

• 8 × 3.5″ SATA hot-swappable drive bays (main storage)

• 1 × 2.5″ SATA hot-swappable SSD bay for cache/ZIL/L2ARC or extra storage

• Internal 2.5″ SSD bay (for cache/log use)

• Supports large raw capacities (up to ~159 TB depending on drives and RAID)

Processor & Memory

• Octa-core Intel Atom C3758 CPU (server-class)

• 32 GB DDR4 ECC RAM (upgradeable to 64 GB)

Networking

• Dual 10 GbE (1/10 GBase-T) RJ45 network ports for high-speed connectivity

• Dedicated RJ45 IPMI remote management port for out-of-band hardware control

• (Optional add-on for extra 10 GbE SFP+ modules on some configurations)

I/O & Expansion

• PCIe expansion slot (commonly PCI-E 3.0 x4) for networking or other cards

• USB ports (front and rear depending on model) for local access or backups

Software & RAID

• Runs TrueNAS (CORE or SCALE) with enterprise features (ZFS filesystem)

• Supports OpenZFS RAID levels (RAIDZ1, RAIDZ2, mirrors, stripe)

• Snapshots, replication, encryption, and data integrity features via ZFS

Management & Features

• Hot-swappable drive support with SMART monitoring and bad-block scanning

• Hardware-accelerated disk encryption available

• Remote power and health control via IPMI with alerts and UPS support

Power & Physical

• Typical power consumption varies based on drives and add-ons (diskless ~40 W, loaded with drives ~80-110 W)

• Compact rack- or desktop form factor (approx. 8.25″ × 10.5″ × 9.5″)

IX Systems TrueNAS Mini XL+ Features

1️⃣ Enterprise-Grade OpenZFS Storage

The Mini XL+ runs TrueNAS with the OpenZFS file system, which provides end-to-end data integrity. Every block of data is checksummed to detect and automatically repair corruption (bit rot). It also supports RAIDZ (similar to RAID-5/6), mirrors, snapshots, compression, and encryption — all designed to protect critical data.

2️⃣ 8 Hot-Swappable Drive Bays

It includes 8 front-accessible 3.5″ SATA bays, allowing drives to be replaced without shutting down the system. This enables easy maintenance, capacity upgrades, and reduced downtime in business environments.

3️⃣ High-Performance 10GbE Networking

With dual 10 Gigabit Ethernet (10GBase-T) ports, the system supports very fast data transfers. This makes it ideal for:

• Multi-user office environments

• Virtual machine storage

• Media production workflows (4K/large file editing)

• High-speed backups

Link aggregation and failover are also supported for redundancy.

4️⃣ Server-Class Processor

Powered by an 8-core Intel Atom C3758 CPU, the system is optimized for storage workloads. It efficiently handles file services, encryption, compression, snapshots, and light virtualization without excessive power consumption.

5️⃣ ECC Memory for Data Protection

The Mini XL+ uses ECC (Error-Correcting Code) RAM, which detects and corrects memory errors before they can corrupt stored data. This is a critical feature for ZFS systems and enterprise storage reliability.

6️⃣ Dedicated IPMI Remote Management

It includes a dedicated IPMI port for out-of-band management. Administrators can:

• Power the system on/off remotely

• Access BIOS/console remotely

• Monitor hardware health
  This is especially useful for server rooms or remote offices.

7️⃣ SSD Cache & Log Support

In addition to the 8 HDD bays, it supports SSDs for:

• L2ARC (read cache) – improves frequently accessed data performance

• SLOG/ZIL (write log) – improves synchronous write performance
  This enhances responsiveness for databases, virtualization, or heavy workloads.

8️⃣ Virtualization & Apps Support

When running TrueNAS SCALE, it supports:

• Virtual machines (KVM)

• Containers (Docker apps)

• Services like SMB, NFS, iSCSI, and S3-compatible object storage

This allows the Mini XL+ to function as more than just storage — it can run applications directly.

9️⃣ Compact & Quiet Form Factor

Despite its enterprise capabilities, the unit has a compact desktop footprint and operates quietly compared to traditional rack servers, making it suitable for offices or labs without dedicated server rooms.

🔟 Energy Efficient Operation

The Intel Atom platform keeps power consumption relatively low compared to larger rack servers, helping reduce operational costs while maintaining reliable performance.

Application Use Cases

1️⃣ Business File Server

• Centralized storage for office documents and shared folders

• Supports SMB (Windows), NFS (Linux), and AFP

• User permissions, Active Directory integration

• Ideal for small–medium businesses

2️⃣ Backup & Disaster Recovery

• Automated workstation and server backups

• Snapshot-based protection against ransomware

• Replication to another TrueNAS system for off-site disaster recovery

• Time-based recovery points

3️⃣ Media & Creative Workflows

• High-speed 10GbE for large video/photo files

• Suitable for 4K video editing storage

• Shared storage for creative teams

• Supports Plex or media streaming servers

4️⃣ Virtual Machine Storage

• iSCSI or NFS storage for hypervisors (VMware, Proxmox, Hyper-V)

• Can also run VMs directly (with TrueNAS SCALE)

• Reliable backend for virtualization labs

5️⃣ Home Lab / IT Lab Environment

• Testing platform for networking, containers, and virtualization

• Ideal for learning ZFS, storage architecture, and enterprise networking

• Remote management via IPMI

6️⃣ Private Cloud Storage

• Self-hosted alternative to public cloud storage

• Supports Nextcloud and other collaboration tools

• Secure remote access with encryption

7️⃣ Database & Application Storage

• Optimized storage pools with SSD caching

• Reliable performance for business apps

• Suitable for small database workloads

 8️⃣ Branch Office Storage

• Remote office file server with central management

• Data replication back to headquarters

• Low power and compact footprint
