TerraMaster f5-422-10g-Nas

About the Product

Type: 5‑bay network-attached storage (NAS)
CPU: Intel® Celeron® J3455 quad-core 1.5 GHz (burst up to 2.3 GHz)
Memory: 4 GB DDR3L (expandable)
Storage: 5 × SATA HDD/SSD, supports RAID 0/1/5/6/10, JBOD
Network: 1 × 10 GbE port + 2 × 1 GbE (link aggregation/failover)
USB: USB 3.0 ports for external drives/backups
Performance: Up to ~670 MB/s read/write over 10 GbE
OS: TerraMaster Operating System (TOS) with backup, sync, multimedia apps
File Systems: EXT4 and Btrfs (with snapshots & data protection)
Use Cases: High-speed file sharing, media streaming, private cloud, centralized backup
Extras: Plex/Emby support, virtual machines, cloud sync

Description
Reviews (0)

TerraMaster F5-422 10GbE NAS 5-Bay Network Storage Server Quad-core CPU with Hardware Encryption (Diskless)

Description

The TerraMaster F5‑422‑10G NAS is a 5‑bay NAS server designed for high‑performance network storage with 10 Gigabit Ethernet connectivity, aimed at small businesses, studios, and power users needing fast internal network speeds and centralized data storage.

Key Hardware Specs

CPU: Intel® Celeron® J3455 quad‑core 1.5 GHz (bursts to ~2.3 GHz) — x86 architecture.
Memory: 4 GB DDR3L (typically soldered); expandable (varies by vendor).
Drive Bays: 5 × SATA (3.5″ & 2.5″ HDD/SSD supported).
Maximum Capacity: Up to ~80–100 TB raw (5 × high‑capacity drives).

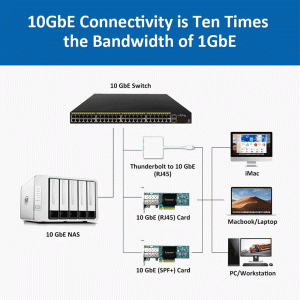

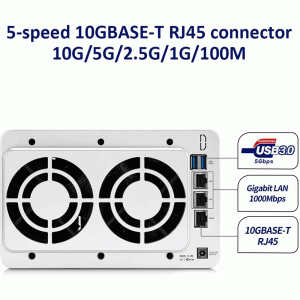

Ethernet:
• 1 × 10GBASE‑T RJ45 port for 10 GbE connections.
• 2 × 1 GbE ports supporting link aggregation/failover.
USB: USB 3.0 ports for external backup.

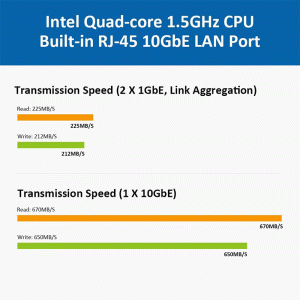

Performance: Up to ~670 MB/s read/write over 10GbE (with RAID 5).

Storage & RAID Support

Supports a range of RAID configurations, including:

RAID 0, 1, 5, 6, 10
JBOD
SINGLE
Online expansion & RAID migration without data loss

This flexibility lets you balance speed, capacity, and redundancy based on needs.

File Systems & Access

File systems: EXT4 and Btrfs. Btrfs includes snapshot protection and advanced integrity features.
Network file services: SMB/CIFS, NFS, AFP, FTP/SFTP, WebDAV, iSCSI.
Cross‑platform support: Works with Windows, macOS, Linux, Android, and iOS.

Software & Features

TOS (TerraMaster Operating System): Web‑based NAS OS with apps for backup, sync, multimedia, and more.
Backup options: Time Machine, Rsync, USB/remote/cloud backups.
Cloud sync: Supports major cloud services (Google Drive, Dropbox, OneDrive, etc.).
Multimedia: Plex/Emby servers and 4K hardware transcoding support.
Enterprise apps: VirtualBox VMs, VPN servers, DNS, webservers, AD/LDAP support.

What It’s Good For

✅ Fast local storage across a 10 GbE network
✅ Centralized backups for workplaces or creative studios
✅ Media streaming and transcoding (4K)
✅ Private cloud file sharing
✅ Advanced RAID with flexible storage expansion

Considerations / Limitations

Performance may vary: Real‑world 10 GbE throughput depends on clients, cables, and disk performance.
Software limitations: Some users report that the built‑in TOS OS may be less mature than more mature NAS OS solutions (e.g., TrueNAS, Synology DSM).
Memory expandability variability: Some units are more limited than others, depending on vendor configuration.
