TerraMaster f4-223

Description

The TerraMaster F4‑223 is a 4‑bay network‑attached storage (NAS) device designed for home, small office, or small business use. It’s essentially a personal or shared storage server you connect to your network — perfect for storing files, backing up multiple computers and phones, streaming media, and running lightweight server apps.

NAS stands for Network Attached Storage: storage that’s always on your network so multiple devices can access it without needing a PC turned on.

Key Hardware Specs

• Processor: Intel® Celeron® N4505 dual‑core CPU (2.0 GHz base, up to 2.9 GHz) — capable of basic file services and 4K video tasks.

• Memory: 4 GB DDR4 RAM pre‑installed (expandable up to 32 GB).

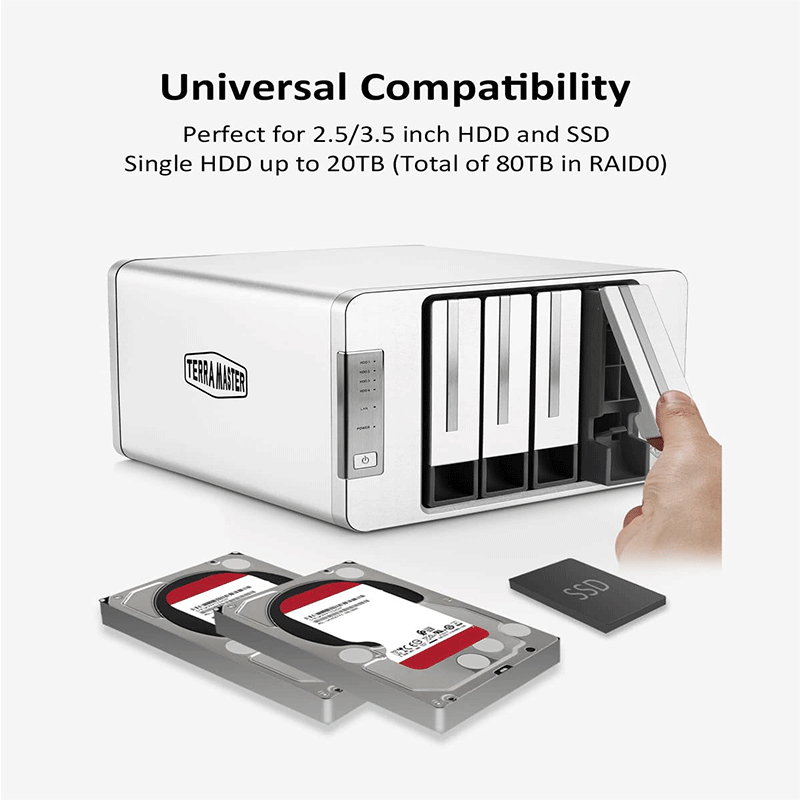

• Drive Bays: 4 × SATA (3.5″ or 2.5″ HDD/SSD).

• Max Internal Raw Storage: Up to ~80 TB (20 TB drives × 4).

• NVMe Slots: 2 × M.2 2280 slots for SSD cache or acceleration.

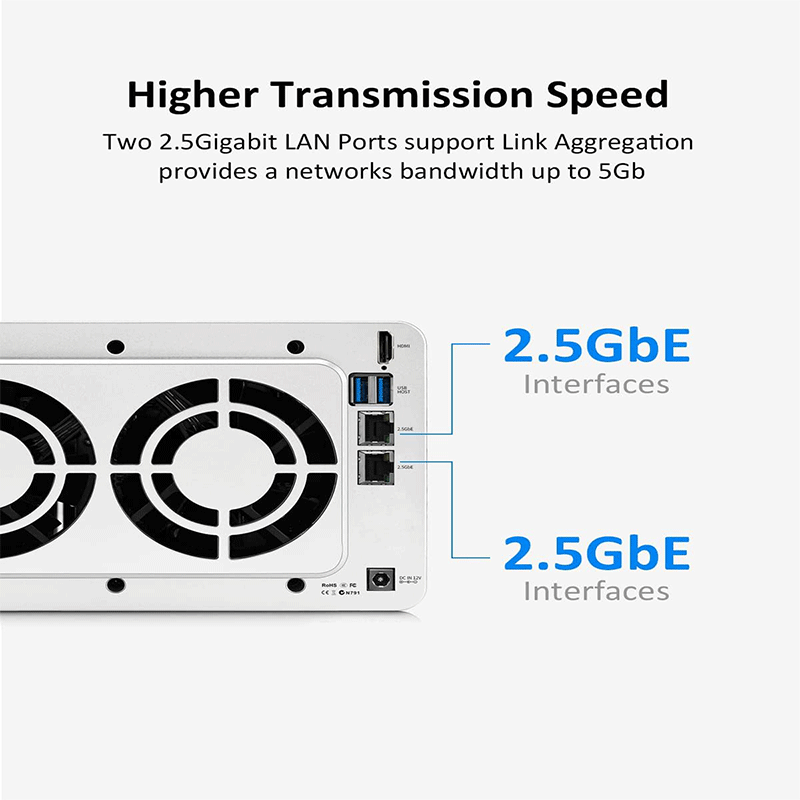

• Networking: Dual 2.5‑Gigabit Ethernet ports — up to ~283 MB/s throughput and can combine for ~5 Gbps.

• USB & Video: 2 × USB‑A 3.2 Gen 2 ports and 1 × HDMI 2.0 port (useful for local display or certain apps).

• Hardware Encryption: AES‑NI for faster encrypted storage transfers.

• Size: Compact desktop form factor (about 227 × 225 × 136 mm).

What It Can Do

Centralized Storage

Store and organize files (photos, documents, videos, backups) from Windows, macOS, Linux, and mobile devices on one centralized system accessible by everyone on your network.

RAID & TRAID Support

Supports multiple RAID levels (0/1/5/6/10, JBOD, Single) plus TRAID — TerraMaster’s flexible RAID‑like disk management that makes adding/upgrading disks easier.

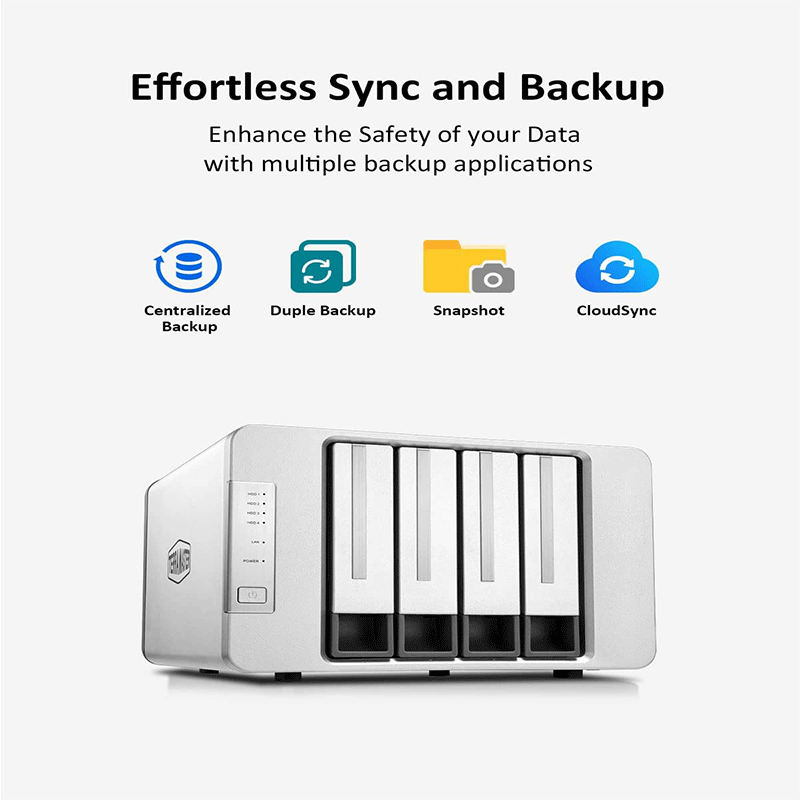

Backup & Sync

Offers built‑in tools for:

• Machine backups (Time Machine or Windows Backup)

• Cloud sync with services like Dropbox, OneDrive, etc.

• Snapshot and data protection features.

Media & Apps

• 4K hardware video transcoding (H.264/HEVC) — useful for streaming to devices like TVs, phones, tablets.

• Can install apps (media servers like Plex, backup tools, Docker containers, and more via TerraMaster’s App Center).

Remote Access

Access your data over the internet and share with others (secure remote access and cloud link options).

Typical Use Cases

🔹 Home NAS: central media storage, backups, home cloud
🔹 Small business/file server: shared document storage and office backups
🔹 Multimedia server: stream movies/videos around your house
🔹 Developer or tech use: running Docker containers, virtualization storage, etc.

Things to Consider

• The built‑in NAS OS (TOS) is functional but some users find it less polished compared with competitors like Synology or QNAP. (User opinions vary online.)

• It’s diskless — you need to buy your own HDDs or SSDs.
