TERRAMASTER F2-424 NAS Storage 2Bay – N95 Quad-Core CPU, 8GB DDR5 RAM, 2.5GbE Port x 2, Network Attached Storage with High Performance (Diskless)
Description

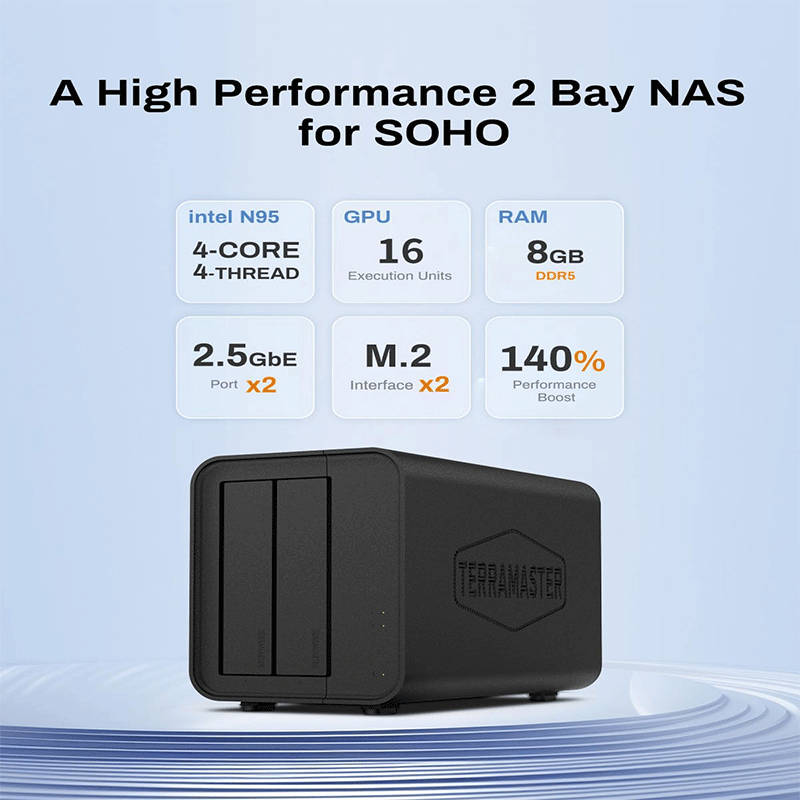

The TerraMaster F2‑424 is a high‑performance 2‑bay network‑attached storage (NAS) device with an Intel Celeron N95 quad‑core CPU, 8 GB DDR5 memory, dual 2.5 GbE networking and dual M.2 NVMe slots for SSD caching. It’s designed for fast file storage, backups, multimedia streaming and small business/home office use.
Key Specifications
| Feature | Specification |
|---|---|
| CPU | Intel® N95 quad‑core processor, up to 3.4 GHz (turbo) |
| Memory | 8 GB DDR5‑4800 MHz (non‑ECC), upgradable up to 32 GB |
| Drive Bays | 2 × SATA (3.5″/2.5″) |
| M.2 Slots | 2 × M.2 NVMe for SSD cache or acceleration |

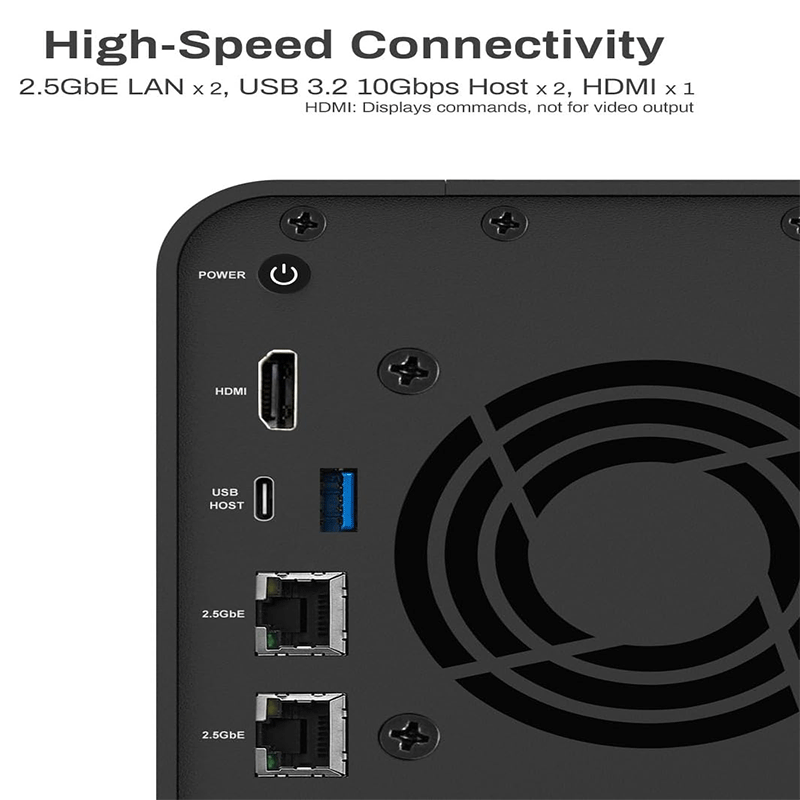

| Networking | Dual 2.5 GbE LAN ports (supports link aggregation) |
| Max Capacity (raw) | Up to ~44 TB (22 TB ×2) per the official spec (drive capacity varies by model) |
| RAID Support | TRAID, RAID 0, RAID 1, JBOD, Single |
| Operating System | TNAS (TerraMaster OS, Linux‑based) with app ecosystem |
Performance & Features
Hardware & Performance
-
The Intel N95 with DDR5 memory gives strong performance for a 2‑bay NAS — capable of fast file serving, backups, and light virtualization workflows.
-
Dual 2.5 GbE ports allow ~283 MB/s transfer rates in optimal setups and link aggregation up to ~5 Gb/s.
-
M.2 NVMe SSD slots help boost responsiveness via cache acceleration.
Storage & Flexibility
-
Supports multiple RAID levels and online migration for flexible data protection and capacity growth.
-
Compatible with standard file services (SMB, NFS, FTP, iSCSI, etc.) and integrates into Windows AD/LDAP environments.
Multimedia & Applications
-
4K decoding and DLNA/uPnP streaming supported for media serving.
-
App ecosystem (via TerraMaster’s TOS) enables backup solutions, virtualization (Docker, VirtualBox), and more.
Ease of Use
-

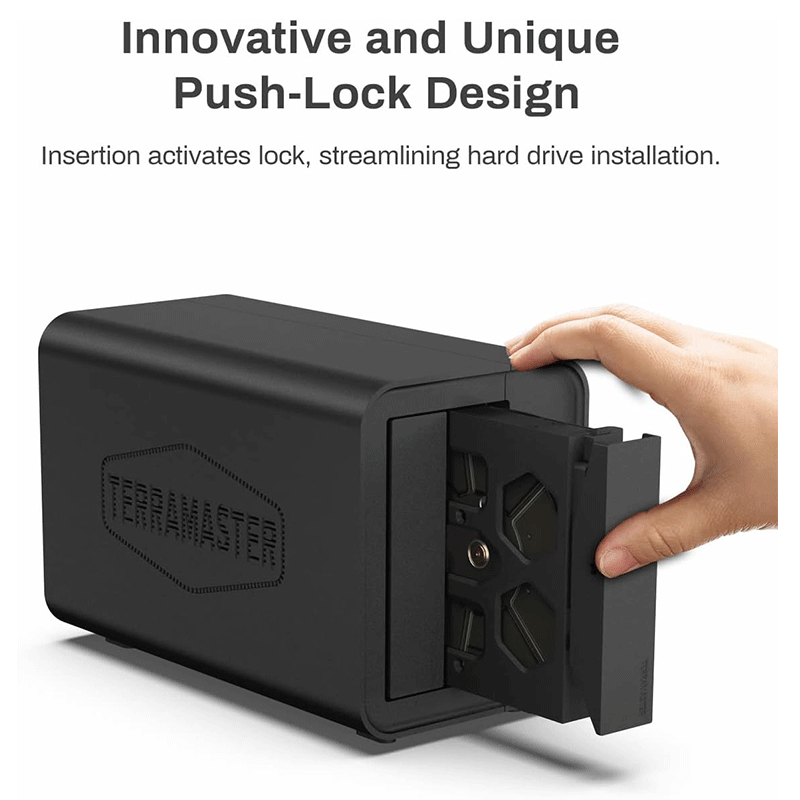

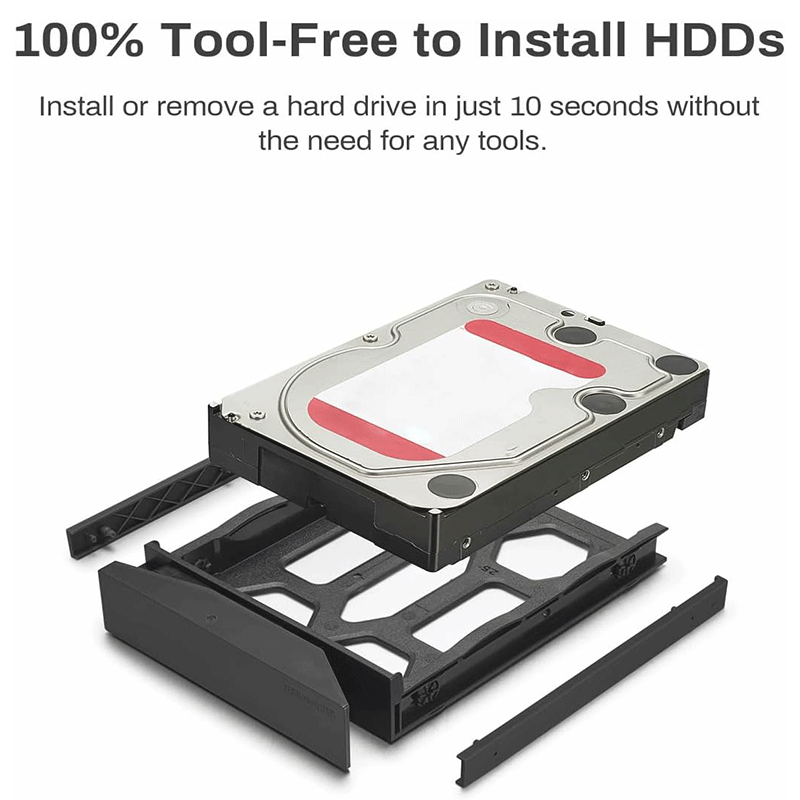

Tool‑free drive trays and side slide cover for NVMe make installation easy.
-

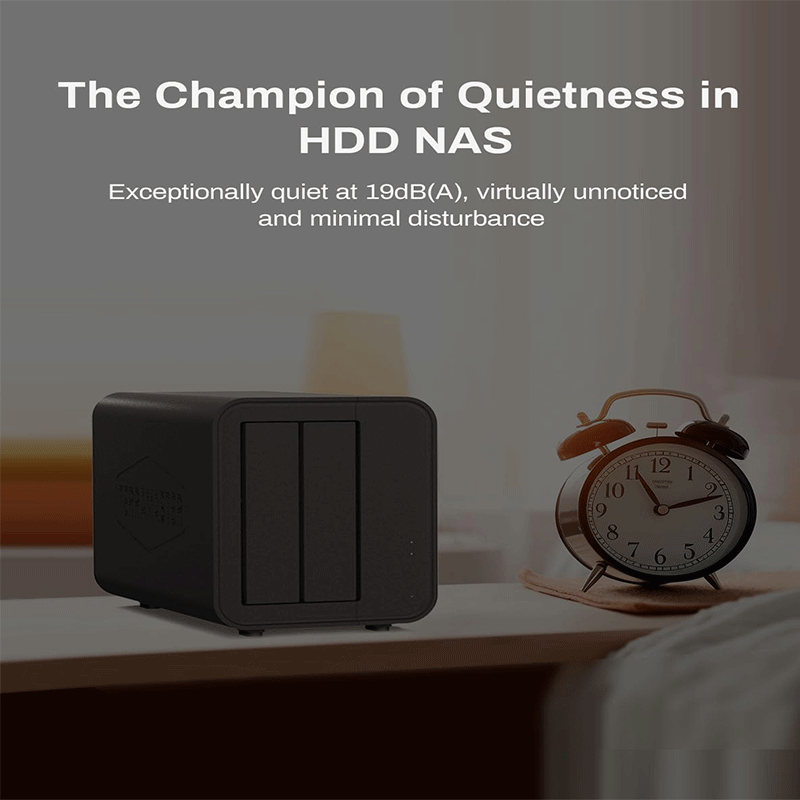

Intelligent fan and sound‑absorbing design help keep noise low.
Typical Uses
🔹 Centralized file storage for home or office
🔹 Automated backups and snapshot protection
🔹 4K multimedia streaming
🔹 Small virtualization or container hosting
🔹 Remote access & file sharing across devices
