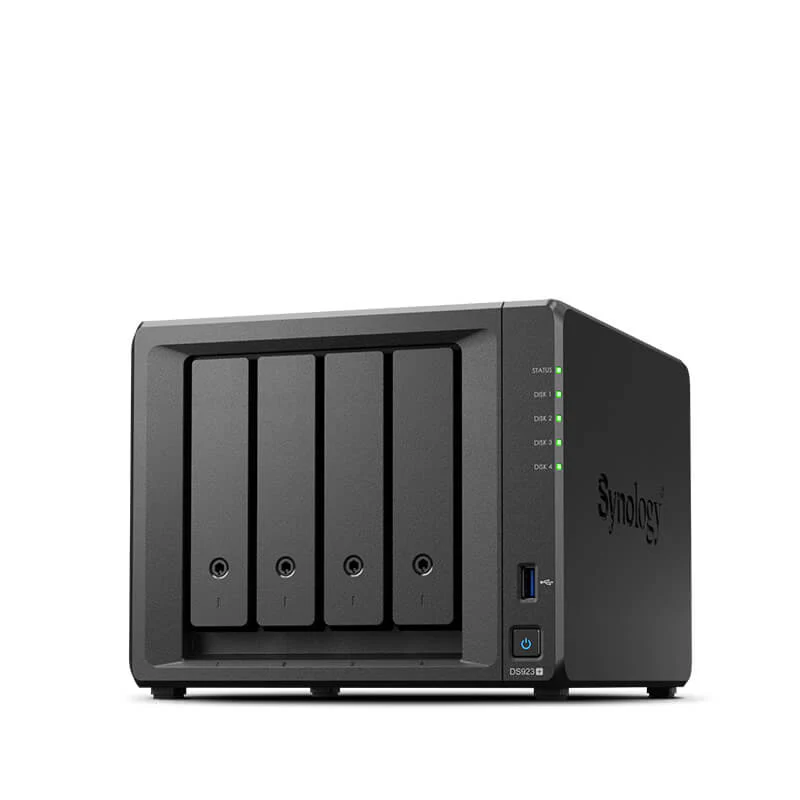

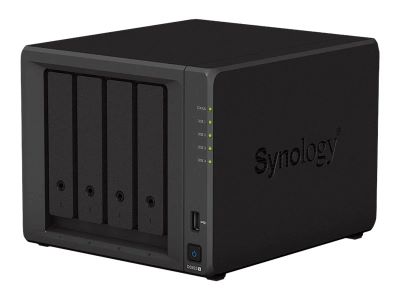

Synology DiskStation DS923+

Key Features and Specifications:

Storage Capabilities

• Supported Storage Drive Types: Compatible with both HDD (Hard Disk Drives) and SSD (Solid-State Drives), providing flexibility in storage options.
• Supported Storage Drive Interfaces: Supports M.2 and Serial ATA III interfaces for high-speed data access and seamless integration of various drive types.
• Storage Drive Sizes Supported: Compatible with 2.5″ and 3.5″ drives, accommodating a wide range of storage options.
• RAID Support: Offers RAID levels 0, 1, 5, 6, 10, and JBOD, along with online RAID migration and expansion capabilities, ensuring data protection and easy scalability.
• Hot-Swap Drive Bays: Features four hot-swap drive bays, allowing for drive replacement without shutting down the system.
• File System Support: Supports BTRFS, Fat, HFS+, NTFS, ext3, and ext4 file systems, providing a broad range of options for data management.
• Diskless Configuration: The DS923+ is diskless, allowing users to customize their storage configuration according to their needs.

Processing Power

• Processor: Powered by the AMD Ryzen R1600, a dual-core processor with a base frequency of 2.6 GHz and a boost frequency of up to 3.1 GHz, delivering high performance and efficiency.
• Memory: Comes with 4 GB of DDR4L memory, which can be expanded up to 32 GB, with ECC (Error-Correcting Code) support to enhance data reliability.

Networking and Connectivity

• Ethernet LAN: Equipped with two Gigabit Ethernet (RJ-45) ports, supporting data rates of 10, 100, and 1000 Mbit/s for fast and reliable network connections.
• Supported Network Protocols: Includes a wide array of network protocols such as SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, iSCSI, HTTP, HTTPS, FTP, and more, ensuring compatibility with diverse network environments.
• iSCSI and Link Aggregation: Supports iSCSI for efficient storage networking and link aggregation to increase network throughput and redundancy.

Design and Build

• Chassis Type: The DS923+ features a compact tower design in sleek black, with active cooling to maintain optimal operating conditions.
• Cooling: Includes two 9.2 cm fans, ensuring efficient heat dissipation during operation.
• Security Features: Equipped with drive bay locking and a Kensington cable lock slot for physical security, along with AES encryption for data protection.

Performance

• Device Class: Ideal for home and small office use, providing high performance for demanding tasks.
• Noise Level: Operates quietly at 22.9 dB, making it suitable for noise-sensitive environments.
• Backup Features: Supports a variety of backup options, including cloud and iSCSI LUN backups, ensuring comprehensive data protection.

Software

• Operating System: Runs on Synology’s DiskStation Manager (DSM) 7.1.1, known for its user-friendly interface and powerful features.
• Management Protocols: Includes support for SNMP for network management and a built-in FTP server for secure file transfers.

Power and Environmental Conditions

• Power Supply: Utilizes an external 100 W power adapter, with typical power consumption at 35.51 W and 11.52 W during HDD standby.
• Operating Conditions: Designed to function in a temperature range of 0 to 40 °C, with a humidity range of 5 to 95%.

Physical Dimensions

• Dimensions: The NAS measures 199 mm in width, 223 mm in depth, and 166 mm in height, with a weight of 2.34 kg, making it compact and easy to fit in various settings.

Sustainability and Compliance

• Certifications: The DS923+ is compliant with CE and RoHS standards, reflecting Synology’s commitment to sustainability and environmentally responsible practices.

Package Contents

• Included Accessories: The DS923+ comes with an external power adapter, an AC power cable, and LAN (RJ-45) cables, providing all necessary components for quick setup.

The Synology 4-Bay DiskStation DS923+ (Diskless) is a customizable, high-performance NAS solution ideal for users who require flexibility in their storage configuration, robust data protection, and advanced network features in a compact design.
