Synology DiskStation DS725+ 2-Bay
Processor:Â AMD Ryzen R1600 (Dual-Core, 4 Threads)
CPU Frequency:Â 2.6 GHz (Base) / 3.1 GHz (Boost)
Memory:Â 4GB DDR4 ECC (expandable to 32GB)
Drive Bays:Â 2 x 3.5″/2.5″ SATA HDD/SSD
M.2 Slots:Â 2 x M.2 2280 NVMe slots (PCIe 3.0)
Network:Â 2 x 2.5GbE ports
USB Ports:Â 1 x USB 3.2 Gen 1, 1 x USB Type-C
Expansion Port:Â 1
Supported RAID Types:Â Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Dimensions:Â 166 x 106 x 223 mm
Weight: 2.5 kgOperating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity:Â 5% to 95% RH
Warranty:Â 3-year hardware warranty, extendable to 5 years with EW201 (in supported regions)Â

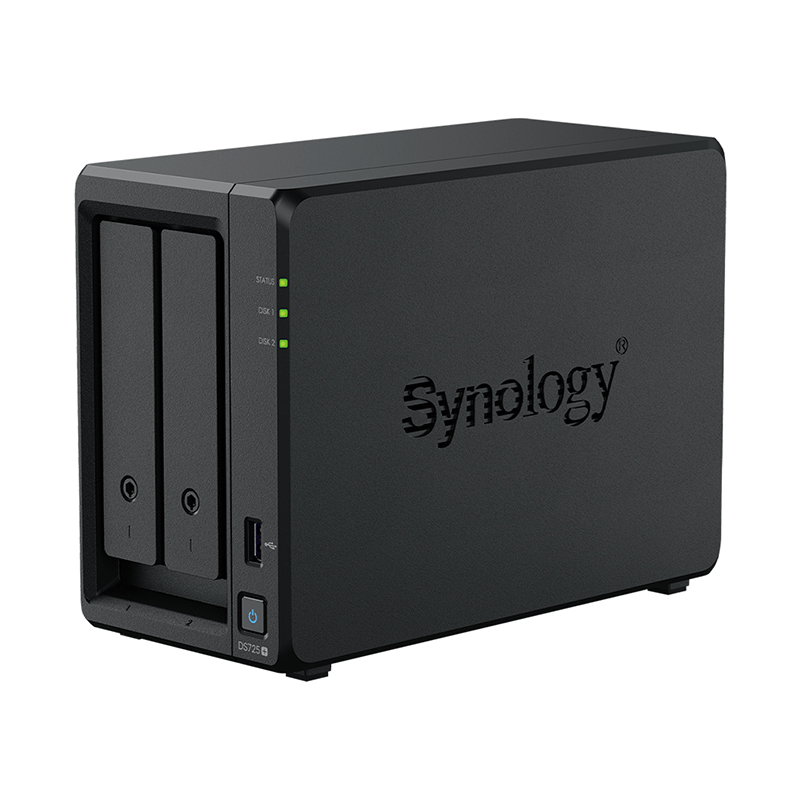

Synology DiskStation DS725+ 2-Bay NAS Enclosure
 Specifications |
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen R1600 |
| CPU Quantity | 1 | |
| CPU Core | 2 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 2 |
| Maximum Drive Bays with Expansion Unit | 7 (DX525 x 1) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Drive Type |
|
|
| Hot Swappable Drive* | ||
| Notes |
|
|
|
External Ports
|
RJ-45 1GbE LAN Port | 1 |
| RJ-45 2.5GbE LAN Port | 1 | |
| USB 3.2 Gen 1 Port | 1 | |
| Expansion Port | 1 | |
| Expansion Port Type | USB Type-C | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
|
Appearance
|
Size (Height x Width x Depth) | 166 mm x 106 mm x 223 mm |
| Weight | 1.51 kg | |
|
Others
|
System Fan | 92 mm x 92 mm x 1 pcs |
| Fan Speed Mode |
|
|
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 17.9 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 65 watts | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 20.41 watts (Access) 7.87 watts (HDD Hibernation) |
|
| British Thermal Unit | 69.61 BTU/hr (Access) 26.84 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature
|
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty plus. | |
| Notes |
|
|
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
|
Optional Accessories
|
|
|
| Notes | For multi-module memory configurations, all modules must be identical and share the same model number. | |
