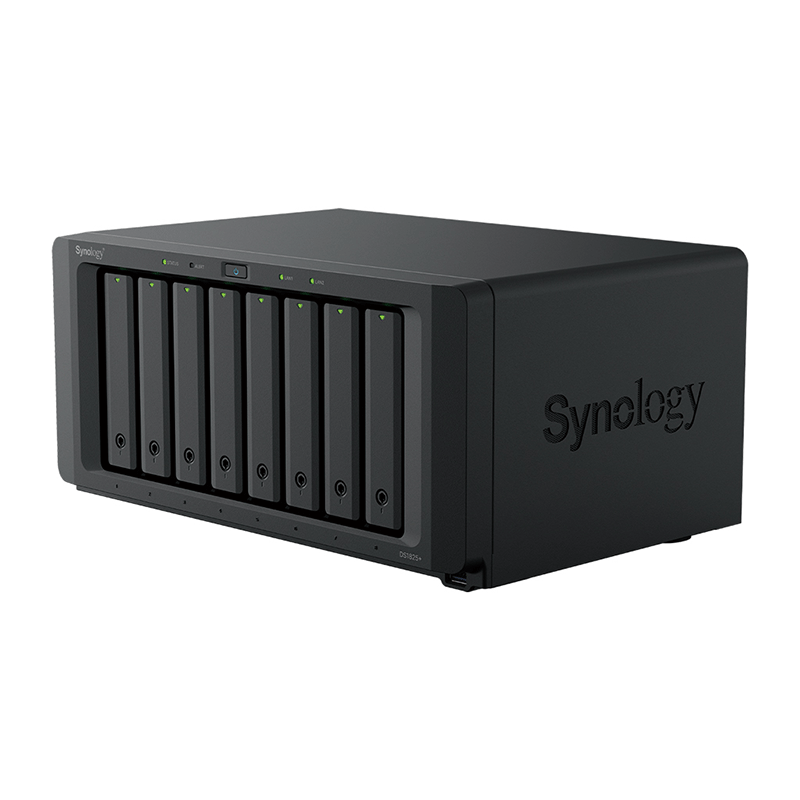

Synology DiskStation DS1825+

Synology DiskStation DS1825+

Storage:

It supports 3.5″ SATA HDDs and 2.5″ SATA SSDs, as well as NVMe SSDs for caching or storage.

Scalability:

The DS1825+ can scale up to 18 drives with expansion units (sold separately).

Performance:

It achieves impressive read and write speeds, with up to 2,239 MB/s read and 1,573 MB/s write speeds.

Connectivity:

It features two built-in 2.5GbE ports and supports 10GbE or 25GbE upgrades through a PCIe slot.

Software:

Powered by Synology’s DiskStation Manager (DSM), it offers a wide range of applications for data management, backup, and surveillance.

Use Cases:

Suitable for businesses needing a robust and scalable storage solution for tasks like file sharing, data backup, and surveillance.

Description
Reviews (0)

Synology DiskStation DS1825+

Specifications
CPU	CPU Model	AMD Ryzen V1500B
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	2.2 GHz
	Hardware Encryption Engine
Memory	System Memory	8 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	8 GB (8 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number.
Storage	Drive Bays	8
	Maximum Drive Bays with Expansion Unit	18 (DX525 x 2)
	M.2 Drive Slots	2 (NVMe)
	Drive Type	3.5″ SATA HDD 2.5″ SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots. Compatible drives are mandatory.
External Ports	RJ-45 2.5GbE LAN Port	2
	USB 3.2 Gen 1 Port	3
	Expansion Port	2
	Expansion Port Type	USB Type-C
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
Appearance	Size (Height x Width x Depth)	166 mm x 343 mm x 243 mm
	Weight	6 kg
Others	System Fan	120 mm x 120 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	23.8 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	250 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	60.1 watts (Access) 18.34 watts (HDD Hibernation)
	British Thermal Unit	204.94 BTU/hr (Access) 62.54 BTU/hr (HDD Hibernation)
	Notes	Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS
Warranty	3-year hardware warranty, extendable to 5 years with EW201
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2
Optional Accessories	DDR4 ECC SODIMM: D4ES03-8G/D4ES03-16G Expansion Units: DX525 Enterprise Series 3.5″ SATA HDD: HAT5300 Series Plus Series 3.5″ SATA HDD: HAT3300 Series Enterprise Series 2.5″ SATA SSD: SAT5200 Series Enterprise Series M.2 2280 NVMe SSD: SNV3400 & SNV5400 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1
	Notes	For multi-module memory configurations, all modules must be identical and share the same model number.
