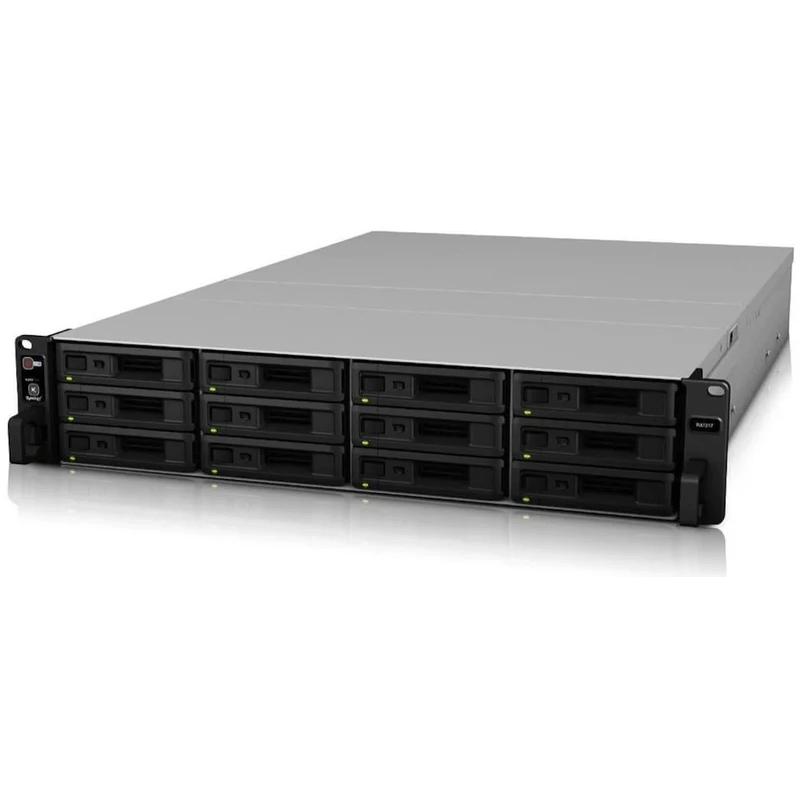

RX1217RP
Specifications |
RX1217RP
|
RX1217
|
|
|---|---|---|---|
| Applied Models | Supports creating volumes across different units |
|
|
| Notes |
|
||
| Storage | Drive Bays | 12 | 12 |
| Drive Type |
|
|
|
| Hot Swappable Drive* | |||
| RAID Management through Synology DSM | |||
| Notes | Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. | ||
| External Ports | Expansion Port | 1 | 1 |
| Appearance | Size (Height x Width x Depth) | 88 mm x 430.5 mm x 692 mm | 88 mm x 430.5 mm x 664 mm |
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 724 mm | 88 mm x 482 mm x 696 mm | |
| Weight | 13.4 kg | 12.7 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKS-02) | 4-post 19″ rack (Synology Rail Kit – RKS-0) | |
| Notes | The rail kit is sold separately | ||
| Power | Power Recovery | Synchronized with the Synology RackStation | Synchronized with the Synology RackStation |
| Power Supply Unit / Adapter | 500 W | 500 W | |
| AC Input Power Voltage | 100V to 240V AC | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | 50/60 Hz, Single Phase | |
| Power Consumption* | 71.3 W (Access) 31.2 W (HDD Hibernation) |
68.60 W (Access) 27.45 W (HDD Hibernation) |
|
| British Thermal Unit | 243.52 BTU/hr (Access) 106.53 BTU/hr (HDD Hibernation) |
234.23 BTU/hr (Access) 93.73 BTU/hr (HDD Hibernation) |
|
| Redundant Power Supply | – | ||
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). | ||
| Temperature | Operating Temperature | 5°C to 35°C (40°F to 95°F) | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | -20°C to 60°C (-5°F to 140°F) | |
| Operating Humidity | 8% to 80% RH | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | 5% to 95% RH | |
| Others | System Fan | 80 mm x 80 mm x 3 pcs | 80 mm x 80 mm x 3 pcs |
| Easy Replacement System Fan | |||
| Noise Level* | 54.2 dB(A) | 54.6 dB(A) | |
| Notes | Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | ||
| Certification |
|
|
|
| Warranty | 5 Years | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | ||
|
Environment & Packaging
|
|||
| Environment | RoHS Compliant | RoHS Compliant | |
| Packaging Content |
|
|
|
| Optional Accessories |
|
|
|
