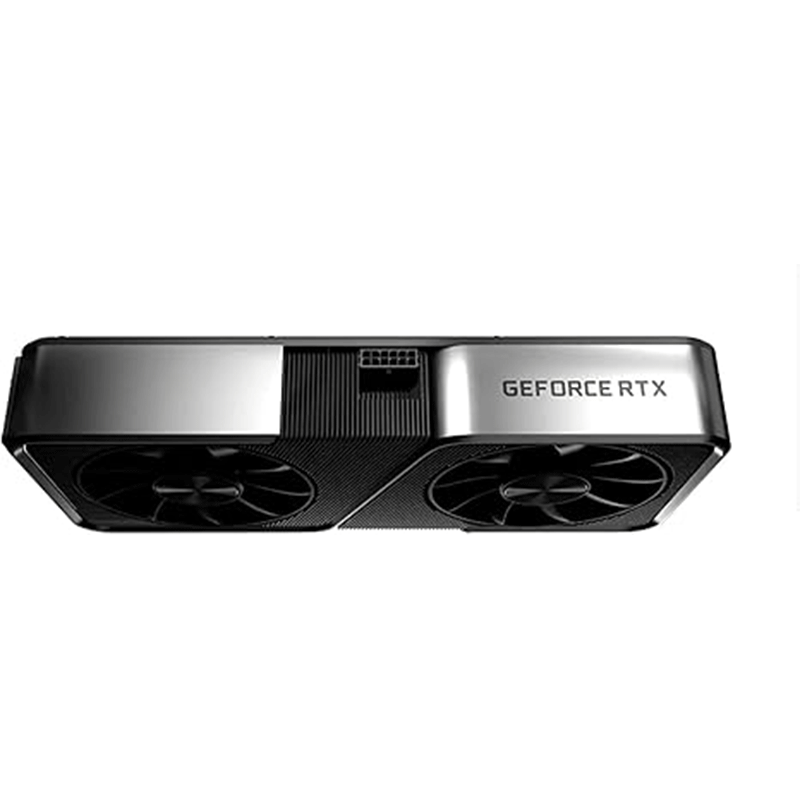

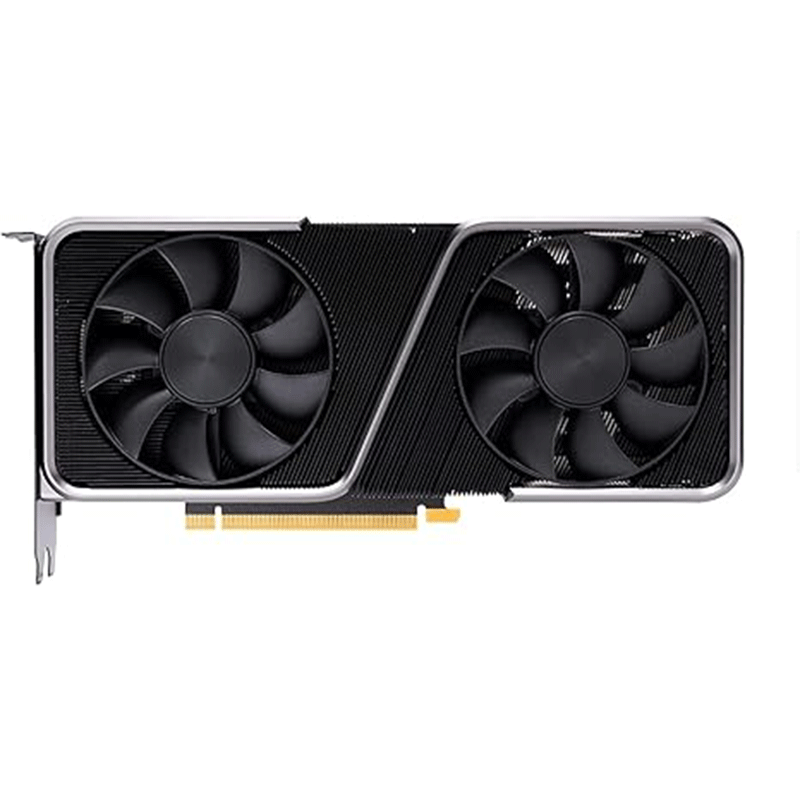

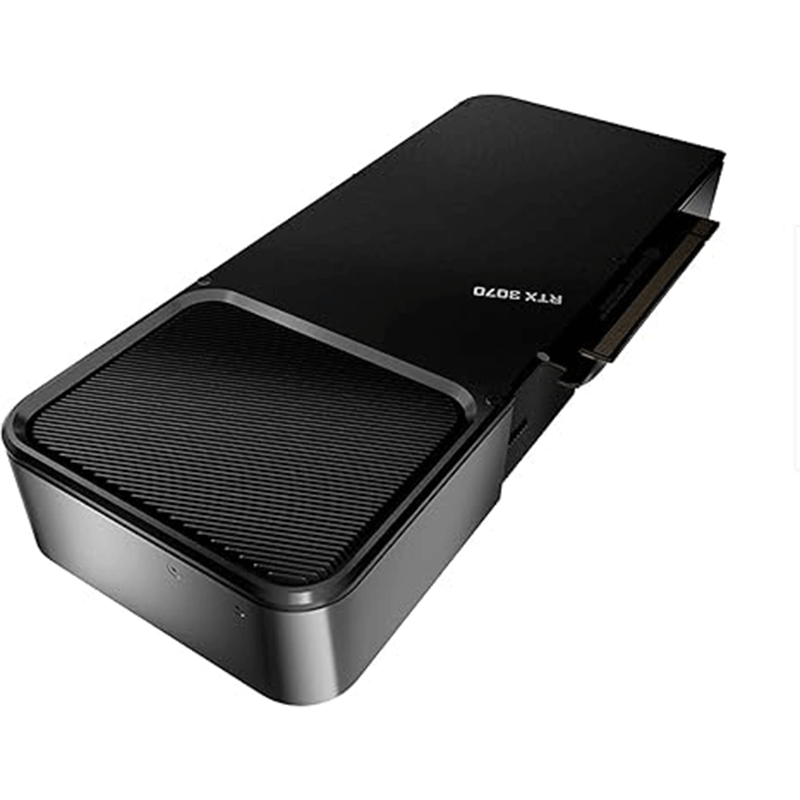

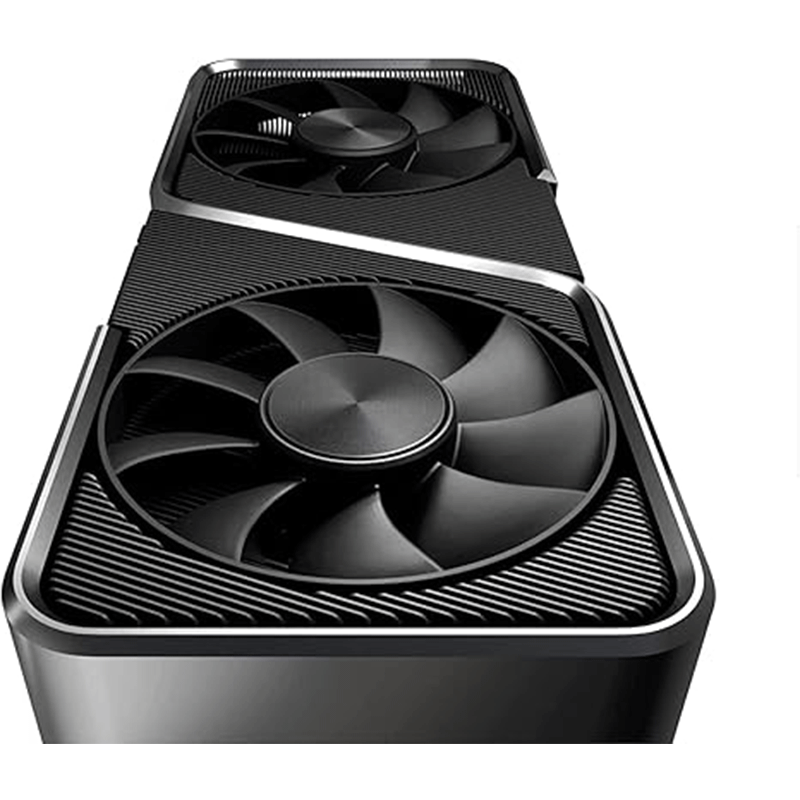

Nvidia GeForce RTX 3070 Graphics Card

Key Features

• Ampere Architecture (2nd Gen RTX)
  • Features improved RT (Ray Tracing) cores and Tensor cores for better performance and efficiency.
• Real-Time Ray Tracing
  • Produces ultra-realistic lighting, reflections, and shadows in supported games.
• NVIDIA DLSS (AI Upscaling)
  • Boosts frame rates using AI without sacrificing image quality.
• 8GB GDDR6 Memory
  • Fast and efficient memory for smooth gameplay and multitasking.
• High 1440p & 4K Performance
  • Designed for ultra settings at 1440p and capable 4K gaming with DLSS.
• NVIDIA Reflex & Low Latency
  • Reduces system latency for competitive gaming.
• Streaming & Content Creation Ready
  • Equipped with advanced NVENC encoder for high-quality streaming and video editing.

 Specifications

GPU & Architecture

• Architecture: Ampere
• GPU Model: GA104
• CUDA Cores: 5888
• RT Cores: 2nd Generation
• Tensor Cores: 3rd Generation
• Process Technology: 8nm

Clock Speeds

• Base Clock: 1.50 GHz
• Boost Clock: Up to 1.73 GHz

Memory

• Memory Size: 8GB
• Memory Type: GDDR6
• Memory Interface: 256-bit
• Memory Speed: 14 Gbps
• Bandwidth: 448 GB/s

Display & Resolution

• Max Resolution: 7680 × 4320 (8K)
• Display Outputs:
  • 1 × HDMI 2.1
  • 3 × DisplayPort 1.4a
• Multi-Monitor Support: Up to 4 displays

Power & Thermal

• Graphics Card Power (TDP): 220W
• Recommended PSU: 650W
• Power Connector: 1 × 8-pin (or 12-pin adapter)
• Max GPU Temperature: ~93°C

Connectivity & Interface

• Bus Interface: PCI Express 4.0 x16
• DirectX Support: DirectX 12 Ultimate
• OpenGL: 4.6
• Vulkan: 1.3

Physical Dimensions (Founders Edition)

• Length: 242 mm
• Width: 112 mm
• Slot Size: Dual-slot

 Additional Features

• NVIDIA DLSS (AI upscaling)
• Real-time Ray Tracing
• NVIDIA Reflex (low latency)
• NVIDIA G-SYNC support
• VR Ready
• NVIDIA NVENC (7th Gen Encoder)

 Performance

• Excellent for 1440p ultra gaming
• Handles ray tracing + DLSS smoothly
• Comparable to or faster than older flagship GPUs (like RTX 2080 Ti)
• Suitable for:
  • AAA gaming (Cyberpunk, Warzone, etc.)
  • 3D rendering & design
  • Video editing & streaming

 Why Choose RTX 3070

• Great balance of price vs performance
• Strong ray tracing capability
• Reliable for both gaming and creative workloads
• Future-proof features like DLSS and DirectX 12 Ultimate

Considerations

• 8GB VRAM may be limiting for some newer AAA games at 4K
• Requires a good power supply (650W recommended)
• Newer GPUs (RTX 40/50 series) offer better efficiency
