Description

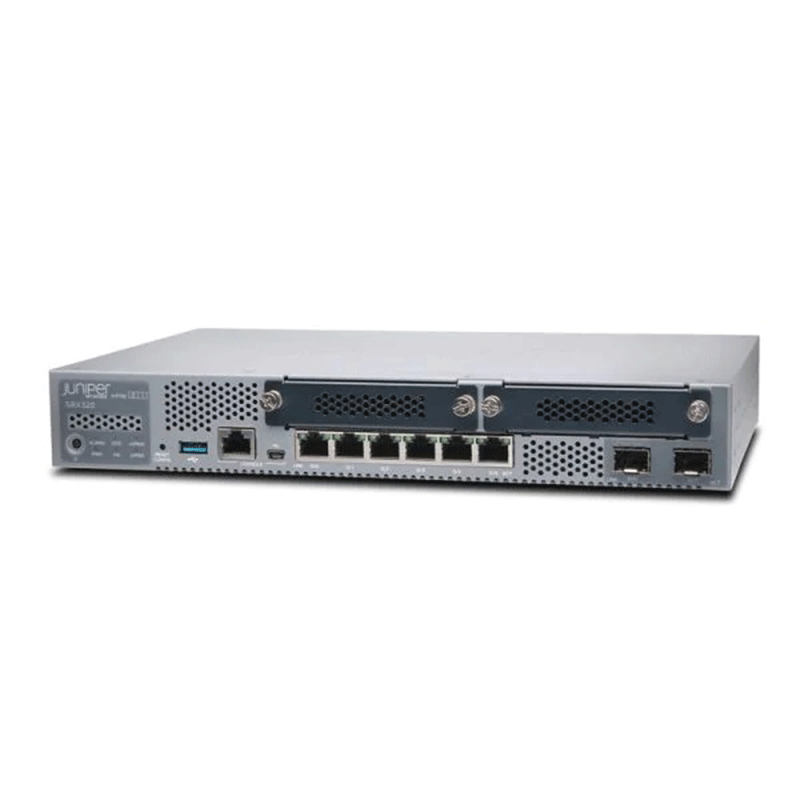

The Juniper SRX320-SYS-JB is a next-generation security gateway (firewall) designed for small to medium-sized businesses and branch offices. It combines firewall protection, VPN connectivity, routing, and switching in a single device to secure and manage enterprise networks.

Specifications

• Ports: 6 × 1GbE RJ-45 + 2 × 1GbE SFP ports

• Expansion: 2 × Mini-PIM slots for WAN modules

• Firewall Throughput: Up to 1 Gbps

• IPSec VPN Throughput: Up to 250–300 Mbps

• Concurrent Sessions: Up to 64,000 sessions

• New Sessions: Up to 5,000 per second

• System Memory: 4 GB RAM

• Storage: 8 GB flash

• USB Ports: 1 × USB 3.0

• Console Ports: RJ-45 and mini-USB

• Power Supply: External AC adapter

• Form Factor: Desktop device (rack mount kit optional)

Key Features

1. Integrated Next-Generation Firewall
The SRX320 provides advanced firewall capabilities such as application awareness, intrusion prevention, and threat intelligence to protect networks from cyber threats.

2. Secure VPN Connectivity
It supports IPsec and SSL VPN technologies, allowing secure site-to-site and remote user connections for distributed businesses.

3. Flexible Port Connectivity
With 6 RJ-45 Gigabit Ethernet ports and 2 SFP ports, the device offers flexible options for LAN and WAN connectivity.

4. Modular Expansion with Mini-PIM Slots
Two Mini-Physical Interface Module (MPIM) slots allow organizations to add WAN interfaces or additional networking capabilities as the network grows.

5. High-Performance Security Processing
The firewall supports up to 1 Gbps throughput, enabling efficient protection without significantly slowing network performance.

6. Junos OS Operating System
Powered by Juniper’s Junos OS, the gateway offers consistent management, automation features, and advanced routing capabilities across enterprise networks.

Applications

• Branch Office Security
  The SRX320 is commonly deployed in branch offices to provide secure internet access, firewall protection, and VPN connectivity to headquarters.
• Small Business Network Protection
  Small enterprises use it to protect internal networks from cyber threats while maintaining reliable internet connectivity.
• Secure Remote Access
  Organizations use their VPN capabilities to enable employees working remotely to securely connect to corporate resources.
• Unified Network Edge Device
  It can act as a single device performing firewall, router, switch, and VPN gateway functions at the network edge.

Why Choose SRX320-SYS-JB

• Combines security, routing, and switching in one device

• High security performance suitable for SMB networks

• Expandable WAN connectivity with MPIM slots

• Reliable Junos OS platform used across Juniper devices

• Cost-effective solution for branch network protection
