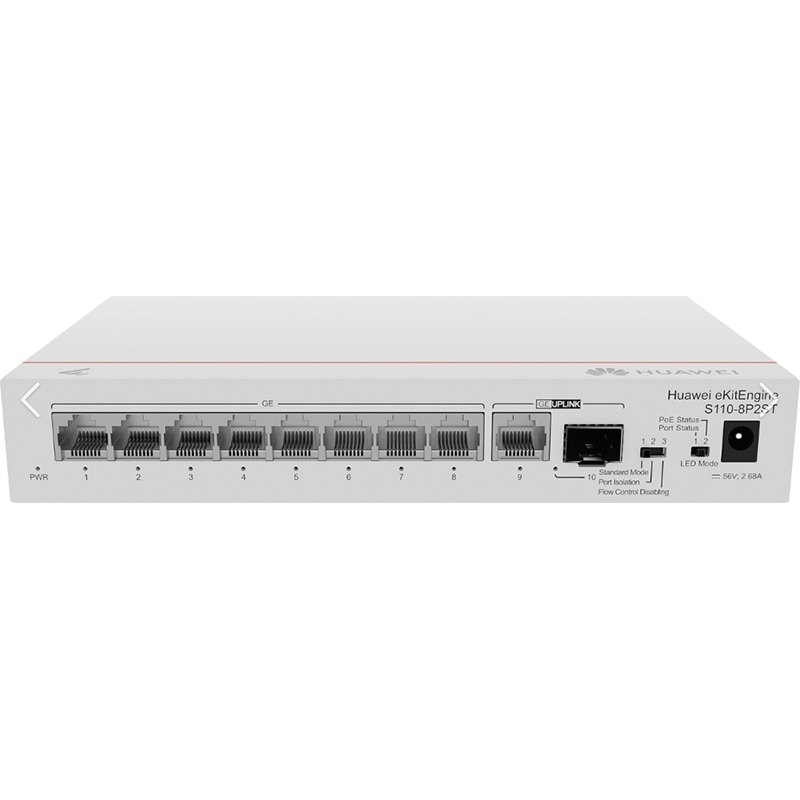

Huawei switch S110-8P2ST

Huawei CloudEngine S110-8P2ST PoE 8-Port Gigabit Network Switch – 8*10/100/1000 BASE-T Ports, PoE+, 1*GE SFP port, 1*10/100/1000 BASE-T Port, AC Power

Description

The Huawei eKitEngine S110-8P2ST is an unmanaged Gigabit Ethernet switch designed for small offices, retail environments, and SOHO setups requiring reliable Power over Ethernet (PoE+) support. With 8 PoE+ ports delivering up to 124W total PoE budget, it powers devices like IP cameras, VoIP phones, and wireless access points without the need for additional power adapters.

This switch features 1 GE SFP uplink and 1 GE RJ45 uplink, offering flexible connectivity options. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments. The compact form factor allows for desktop or wall mounting, providing versatility in installation.

With a switching capacity of 20 Gbps and a packet forwarding rate of 14.88 Mpps, the S110-8P2ST ensures efficient data transmission. It supports multiple working modes, including Standard, Port Isolation, and Flow Control Disabling, allowing for tailored network configurations.

Key Specifications

• Model: Huawei CloudEngine S110-8P2ST
• Number of Basic Switching RJ-45 Ethernet Ports: 8
• DC Input Voltage: 56V
• Power over Ethernet (PoE): Yes
• Rack Installation: Yes
• 8 x 10/100/1000BASE-T PoE+ Ports (IEEE 802.3af/at)
• 1 x GE SFP Uplink Port | 1 x GE RJ45 Uplink Port
• Total PoE Budget: 124W
• Switching Capacity: 20 Gbps | Forwarding Rate: 14.88 Mpps
• Fanless Design for Silent Operation
• Supports Standard, Port Isolation, and Flow Control Disabling Modes
• Compact Size: 35 x 210 x 130 mm | Weight: 1.11 kg
• Operating Temperature: 0C to 40C | Humidity: 5% to 95% RH

 Features

• High-Speed Ports: The Huawei S110-8P2ST comes equipped with 8 Gigabit Ethernet ports, providing fast and reliable connections for various devices such as computers, IP cameras, and wireless access points.
• SFP Slots for Fiber Connectivity: With two additional SFP slots, this switch allows for flexible fiber connectivity, making it ideal for businesses requiring extended network reach and enhanced data transfer capabilities.
• Plug-and-Play Design: The switch supports a simple plug-and-play setup, making it easy to install without needing any complex configurations. This user-friendly design ensures minimal downtime and quick network deployment.
• Energy-Efficient Technology: Huawei’s energy-efficient technology reduces power consumption without compromising performance, helping businesses lower operational costs and promote eco-friendly practices.
• Advanced Security Features: The Huawei S110-8P2ST provides robust security features, including advanced firewall protections and VLAN support, safeguarding your network from potential threats and unauthorized access.
• Seamless Network Management: This switch supports easy network management through its intuitive web interface, allowing administrators to monitor, configure, and manage network resources efficiently.

Application Use Case

The Huawei CloudEngine S110-8P2ST PoE 8-Port Gigabit Network Switch is a compact, high-performance switch designed for small to medium-sized networks. Here are its key applications:

Primary Use Cases

• Small Office/Home Office (SOHO) Networks Ideal for connecting multiple devices like computers, printers, and IP phones in a compact office setup.
• IP Surveillance Systems With 8 PoE+ ports (each supporting up to 30W), it’s well-suited for powering IP cameras directly through Ethernet cables.
• Wireless Access Point Deployment Supports powering wireless APs in enterprise or campus environments without needing separate power sources.
• Retail and Hospitality Environments Useful for POS systems, digital signage, and guest Wi-Fi setups where centralized power and data are needed.
• Education and Training Centers Can support smart classroom setups with interactive boards, projectors, and connected devices.

Technical Highlights

• PoE+ Capability: Total PoE power budget of 124W, enabling simultaneous powering of multiple devices.
• Uplink Options: Includes 1 GE SFP port and 1 additional Gigabit RJ-45 port for flexible uplink configurations.
• AC Power Supply: Comes with a built-in AC adapter for easy deployment

Why Choose Huawei Switch S110-8P2ST?

The Huawei S110-8P2ST is an excellent choice for SMEs needing a cost-effective yet powerful network switch. Its combination of Gigabit Ethernet ports, SFP slots for fiber connectivity, and advanced security features makes it a reliable backbone for any business network. Whether you’re upgrading your current network infrastructure or setting up a new one, this switch ensures a stable, secure, and high-performance networking environment.
