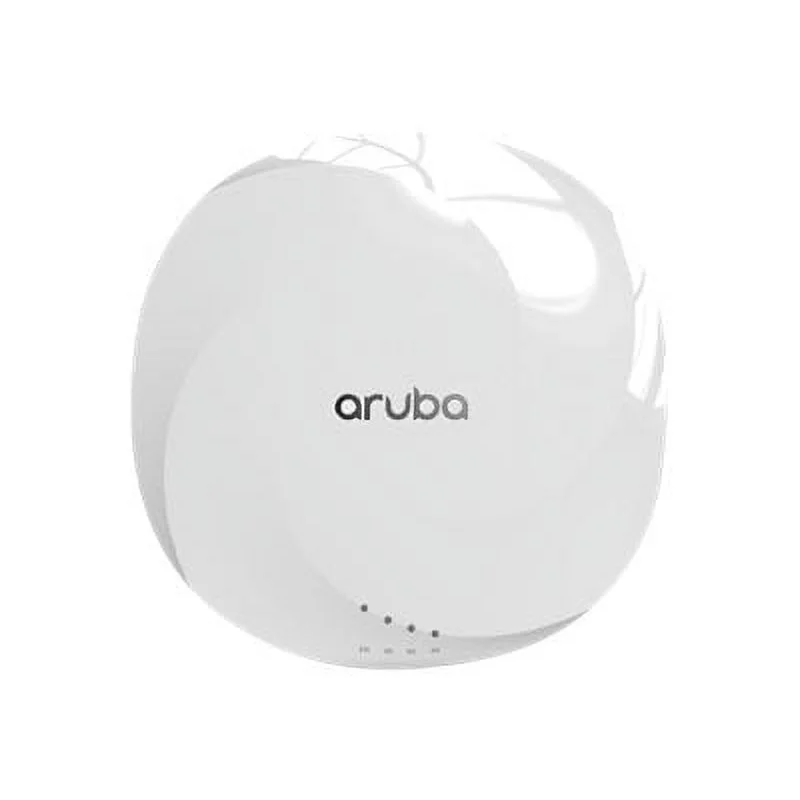

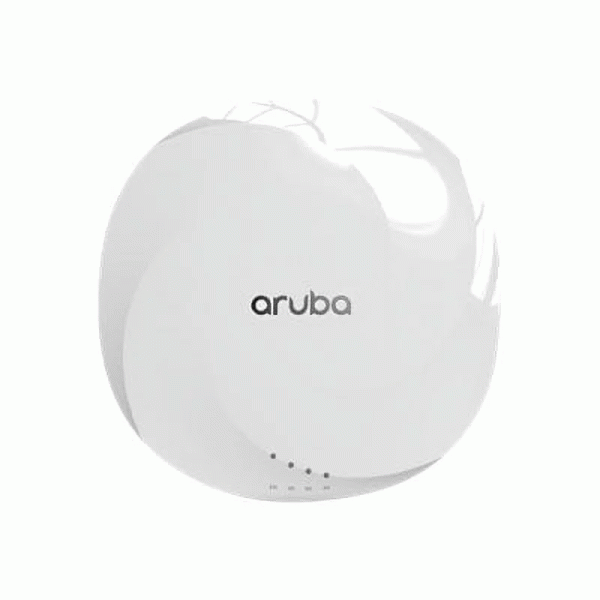

Aruba AP-635 (RW) Campus Access Point Wifi 6E
HPE Aruba Networking 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios.
More Capacity and Wider Channels with Wi-Fi 6E
- The HPE Aruba Networking 630 Series Campus Access Points deliver a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds.
- With up to seven 160 MHz channels, the APs help maximize performance for low-latency, bandwidth-hungry applications.
- It is designed for low power indoor environments (LPI).
Less Interference and Fewer Coverage Gaps
- The HPE Aruba Networking 630 Series Campus Access Points provide comprehensive tri-band coverage using three radios.
- The HPE Aruba Networking unique ultra tri-band filtering mitigates interference among 5 GHz and 6 GHz radios and prevents gaps in channel coverage.
- Since only Wi-Fi 6E enabled devices can operate in the 6 GHz band, it is less congested with no interference from legacy devices.
Extends capabilities of Wi-Fi 6 (802.11ax) APs
- HPE Aruba Networking 630 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.
- Unique HPE Aruba Networking capabilities include ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring to optimize user experience and energy use.
Ensures Business Continuity and High Availability
- High availability with two HPE Smart Rate Ethernet ports for 1-2.5 Gbps to offer true hitless failover for both data and power.
- Cloud, controller, or controllerless operation modes address all campus, branch and remote use cases.
HPE Aruba Networking AP‑635 (RW) Tri Radio 2×2 Wi‑Fi 6E Internal Antennas 5‑pack Campus Access Point
CertificationsUL2043 plenum rating; Wi-Fi Alliance; Wi-Fi CERTIFIED a, b, g, n, ac; Wi-Fi CERTIFIED 6E (ax, 6GHz); WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE); WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband; Wi-Fi Location; Passpoint (release 2); Bluetooth SIG; Ethernet Alliance (POE, PD device, class 5)
Input voltage12 Vdc (+/- 5%) or 48 Vdc (nominal) PoE
RegulatoryFCC/ISED; CE Marked; RED Directive 2014/53/EU; EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU; UL/IEC/EN 60950; IEC/EN 62368-1; EN 60601-1-1, EN60601-1-2
Wi-Fi antennaHPE Aruba Networking AP-635 (internal antenna): Integrated downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.6 dBi in 2.4 GHz, 7.0 dBi in 5 GHz and 6.3 dBi in 6 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.9 dBi in 2.4 GHz, 4.9 dBi in 5 GHz and 4.3 dBi in 6 GHz.
Heat dissipation66.3 BTU/hr worst case (PoE powered), 57.9 BTU/hr worst case (DC)
Connectivity, standardWi-Fi 6E (IEEE 802.11ax)
WLAN: tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11ax 2×2 MIMO
Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

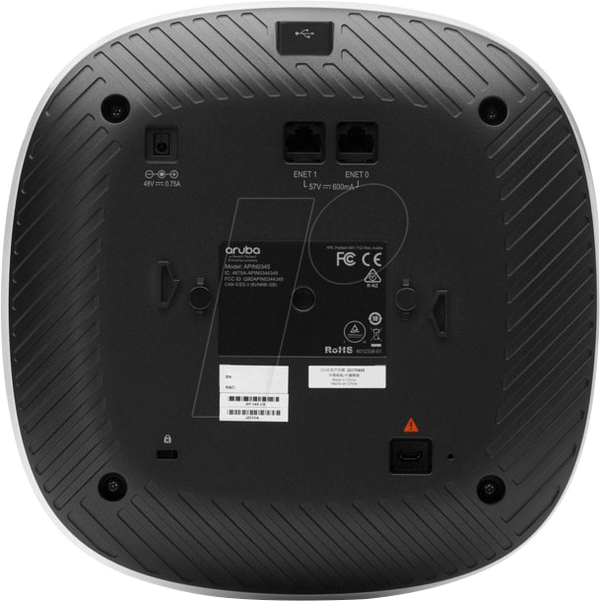

PortsE0, E1: Two Ethernet wired network ports (RJ-45), auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
DC power interface
USB 2.0 host interface (Type A connector)
Visual indicators (four multi-color LEDs)
Reset button: factory reset, LED mode control
MountingA mounting bracket has been preinstalled on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately). Optional mounting kits available, see the ordering guide.
Power consumption23.8 W worst case (POE powered), 20.7 W worst case (DC). Excludes power needed to supply up to 5W to an attached USB device.
Radio coverageIndoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11ax 2×2 MIMO
WarrantyLimited lifetime warranty. See the warranty duration.
Detailed product descriptionHPE Aruba Networking 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios.
DifferentiatorAvailable everywhere except, US, Israel, Egypt and Japan
Weight1300g (2.86lb)
Dimensions220mm x 220mm x 50mm (8.66in x 8.66in x 1.96in)
