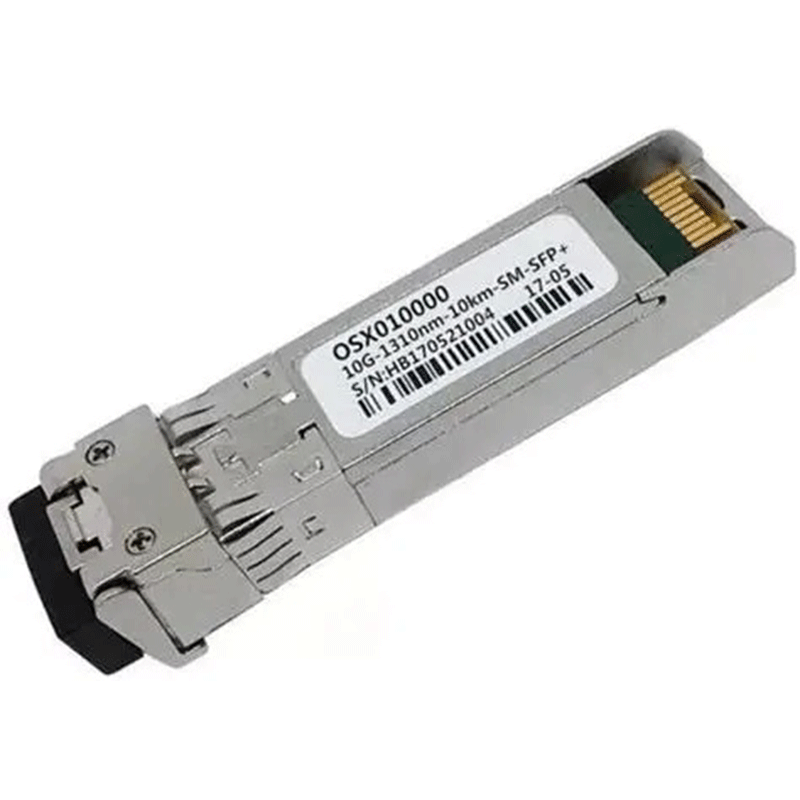

Huawei OSX010000

Huawei Original 10g 10km SFP+/Osx010000 Hgn 10g 1310nm 10km SFP+ Optical Transceiver 02318170

Description

Huawei 02318170 SFP+ Transceiver A high-performance, hot-pluggable optical module designed for 10GBASE-LR Ethernet applications. It supports data rates up to 10.3 Gbps over single-mode fiber (SMF) with a reach of up to 10 km at a wavelength of 1310 nm. Features an LC duplex connector and operates within a temperature range of 0°C to 70°C

• Type: SFP+
• Compatibility: Huawei OSX010000 (02318170) compatible
• Tx/Rx Wavelength: 1310 nm. / 1310 nm.
• Media Type: Single-Mode Fiber (SMF)
• Optical Budget: 6 dB
• Max. Distance: 10 km
• Data Rate: 1.25-10.31 Gbps
• Temperature:Standard 0°-70°C

Technical Specifications

• 10GBASE-LR Small Form-factor Pluggable Plus (SFP+).
• Standards based 10-Gigabit Ethernet (10GBASE-LR).
• 10 Gbit/sec line speed.
• Operating distance up to 10km on OS1 fibre.
• Transmitter wavelength 1310nm.
• Industry-standard LC duplex connector.
• Singlemode Fibre (SMF).
• Digital Optical Monitoring (DOM).

Key Advantages

1.  High-Speed Transmission: Supports data rates from 1.25 Gbps to 10.31 Gbps, ideal for 10G Ethernet applications.
2. Long-Distance Reach: Designed for single-mode fiber (SMF) with a maximum transmission distance of up to 10 km, making it suitable for metropolitan and campus networks.
3. Stable Wavelength: Operates at a 1310 nm wavelength for both transmission and reception, which is optimal for long-range SMF communication.
4. Compact Form Factor: Uses the SFP+ form factor, allowing for hot-swappable installation and easy integration into existing network equipment.
5. Quality Assurance: Backed by a comprehensive testing program and typically includes warranties (e.g., 3 to 5 years depending on the vendor), ensuring reliability and performance.
6. Wide Operating Temperature: Functions reliably within a standard temperature range of 0°C to 70°C, suitable for most indoor environments.
7. Compatibility: Fully compatible with Huawei networking equipment and adheres to the 10GBASE-LR standard, ensuring interoperability.

Key Applications

• Data Center Interconnects: Ideal for linking servers, switches, and storage across data centers up to 10 km apart.
• Enterprise Networks: Supports high-bandwidth applications in large corporate LANs and campus networks.
• Telecom and ISP Infrastructure: Used in metro and access networks for 10G Ethernet transport over long distances.
• Switch and Router Uplinks: Provides 10G uplinks between aggregation and core network devices.
