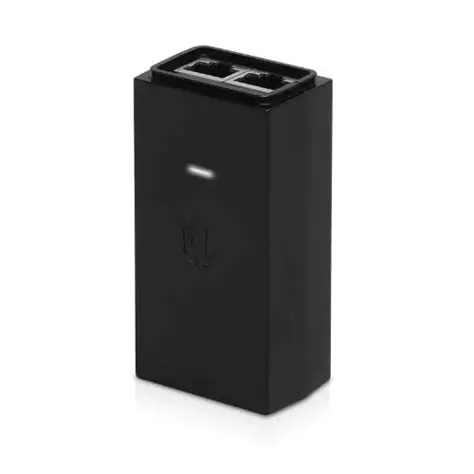

Ubiquiti POE-24V-12W-G

Ubiquiti PoE-24 PoE Adapter (POE-24-12W-G-KIT)

Description

The Ubiquiti POE-24 PoE Adapter is a power over Ethernet Adapter for use with your Ubiquiti Wireless Networking devices. This PoE device also supports Gigabit. This intelligent POE has remote hardware reset circuitry and allows the device connected to it, such as the NanoStationM and most UniFi products to be reset remotely from power supply location.

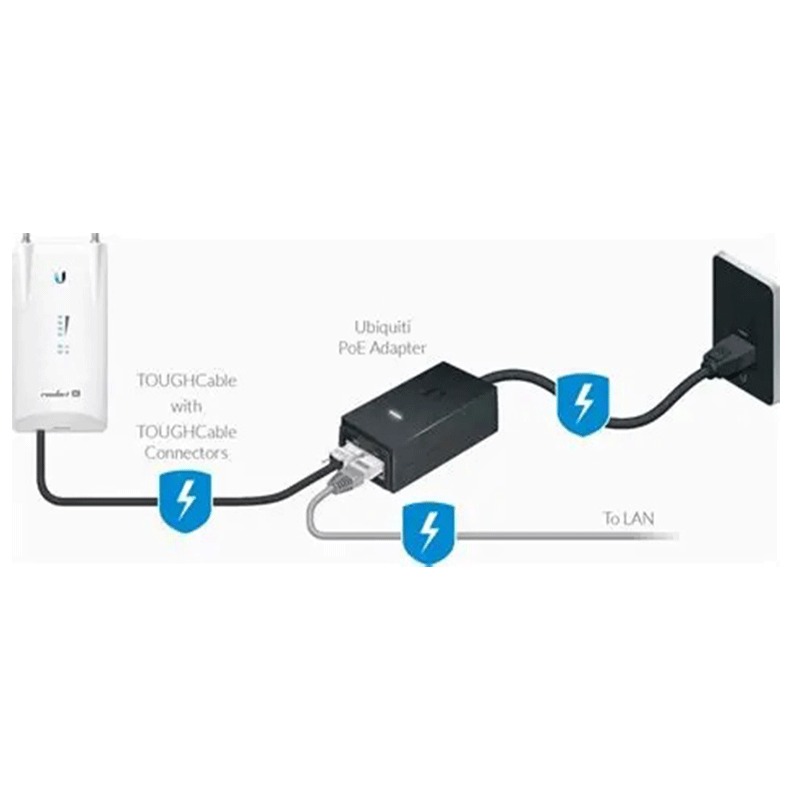

With device Protection PoE, Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events. Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors. POE-24-12W-G can be attached to an airGateway™ to connect airMAX® devices with Wi-Fi at users’ premises. The POE-24-12W-G can be mounted on a wall.

Ubiquiti POE-24 PoE Adapter Key Specifications:

• Output Voltage: 24VDC @ 0.5A
• Input Voltage: 90-260VAC @ 47-63Hz
• Input Current: 0.3A @ 120VAC, 0.2A @230VAC
• Switching Frequency: 200kHz
• Supports Gigabit
• Output Power: 12W
• Efficiency: ~83%
• Connector Type: IEC-320 C6
• Networking Interface: RJ45 Gigabit LAN port
• Dimensions: 89 x 46 x 33 mm
• Weight: 100 g

Key Features Ubiquiti PoE-24-12W-G:

• Reliable Power Delivery: Provides stable and consistent 24V power to your Ubiquiti devices.
• Gigabit Ethernet Port: Enables high-speed data transmission for seamless network connectivity.
• Surge Protection: Includes built-in surge protection to safeguard your devices from electrical disturbances.
• Compact and Versatile: The PoE-24-12W-G is compact and can be conveniently wall-mounted using optional brackets.
• Compatibility: Compatible with a wide range of Ubiquiti PoE devices.
• Remote Reset Capability: Allows remote hardware reset of connected devices like NanoStationM and UniFi products.
• Earth Grounding: Especially effective when paired with Ubiquiti TOUGHCable™.
• 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (–)

Advantages

• • Surge Protection: Up to 1500A max surge discharge
  • Clamping protection
  • Maximum surge discharge
  • Peak Pulse Current: High tolerance for transient surges
  • AC cable with earth ground

Compatibility

Designed to power a wide range of Ubiquiti devices including:

• airFiber
• airMAX
• EdgeMAX
• mFi
• UniFi AP
• UniFi Video/airVision systems
