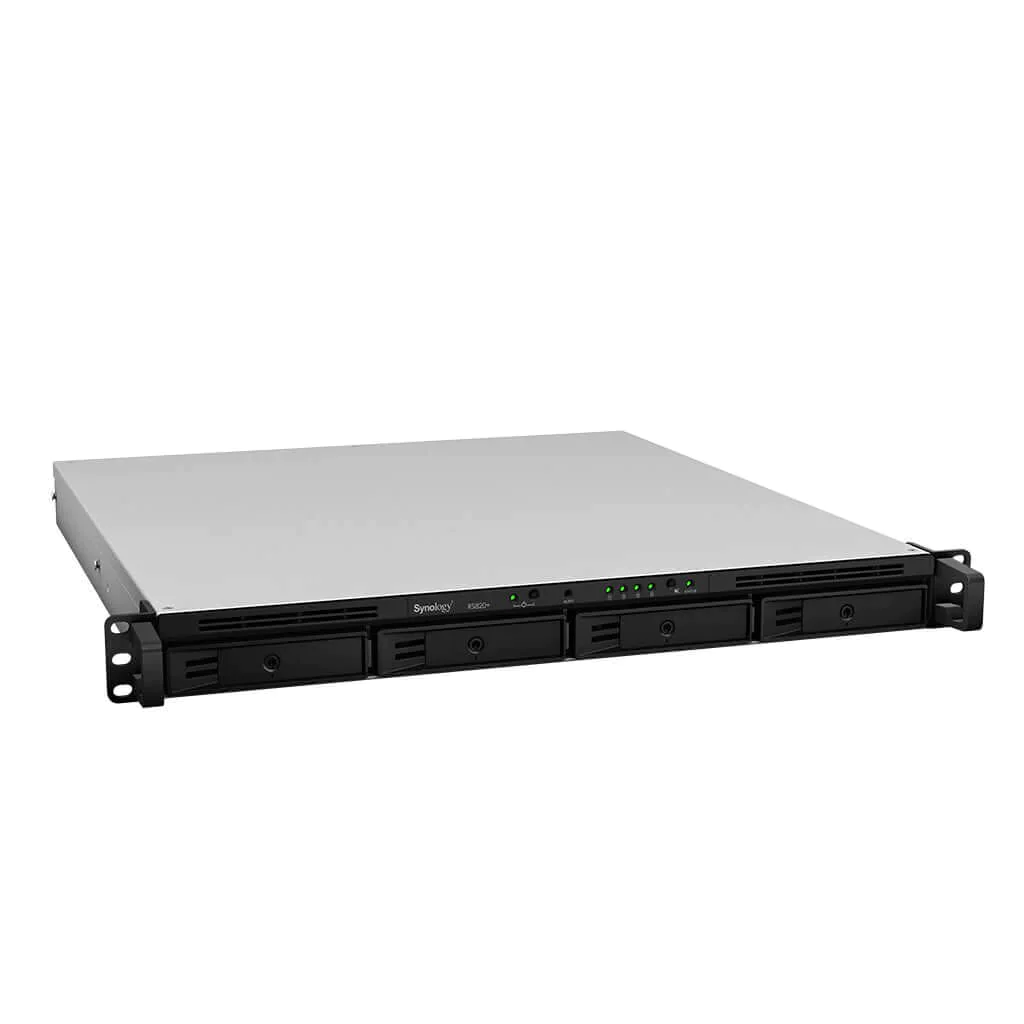

Synology RackStation RS820RP+
- Plus Series 4-bay Rackmount NAS for Offices and IT Pros
- Diskless 0 TB. Expandable further with Expansion
- Supports RAID SHR, 0,1,5,6,10
—
RackStation RS820+/RS820RP+
Ideal 1U rackmount NAS for high-performance data management
High-performance storage solution with on-demand scalability
Synology RackStation Synology RackStation RS820RP+ is designed for businesses pursuing an effective and centralized data management. It comes with four drive trays and 1GbE LAN ports and supports an optional 10GbE network or M.2 SSD adapter card, providing fast data transmission and reducing IO latency.
CPU
4-core 2.1 GHz
Memory
2GB DDR4, up to 18GB
High Performance
Over 1,621 MB/s sequential reading
Scalability
Up to 8 drives with RX418
Built for service reliability
Synology RackStation RS820RP+ comes with four 1GbE LAN ports to support Link Aggregation and failover. Synology High Availability provides a reliable active/passive server cluster, maximizing service uptime. Furthermore, RS820RP+ is equipped with redundant power supplies to achieve service continuity.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
 Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention
Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
Engineered for reliability, backed by Synology
Synology RackStation RS820RP+ is designed to reliably store your data and is backed by Synology’s three-year hardware warranty. An optional two-year extended warranty is available in select regions for up to five years of coverage.
Powered by Synology DSM
Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Synology Office
Collaborate on documents, spreadsheets, and slides in real time to boost team productivity.
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.
Security
Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats.
All-in-one server
Save additional investment by integrating various network services, web/mail services, management applications into your NAS.
- Power Indicator
- Power Button
- Alert indicator
- Drive status indicator
- Beep off button
- Status Indicator
- Drive Tray
- Console port
- PCIe expansion slot
- Power port
- Fan
- 1GbE RJ-45 port
- Reset button
- USB 3.0 port
- eSATA port
CPU |
CPU Model | Intel Atom C3538 |
|---|---|---|
| CPU Architecture | 64-bit | |
| CPU Frequency | Quad Core 2.1 GHz | |
| Hardware Encryption Engine (AES-NI) | ||
Memory |
System Memory | 2 GB DDR4 |
| Total Memory Slots | 1 | |
| Memory Expandable up to | 18 GB (2GB + 16 GB) | |
| Notes |
|
|
Storage |
Drive Bays | 4 |
| Maximum Drive Bays with Expansion Unit | 8 | |
| Compatible Drive Type*(See all supported drives) |
|
|
| Maximum Internal Raw Capacity | 64 TB (16 TB drive x 4) (Capacity may vary by RAID types) | |
| Maximum Raw Capacity with Expansion Units | 128 TB (64 TB + 16 TB drive x 4) (Capacity may vary by RAID types) | |
| Maximum Single Volume Size* | 108 TB | |
| Hot Swappable Drive | ||
| Notes |
|
|
External Ports |
RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 2 | |
| eSATA Port | 1 | |
PCIe |
PCIe Expansion | 1 x Gen3 x8 slot (black, x4 link) |
| Add-In-Card Support |
|
|
File System |
Internal Drives |
|
| External Drives |
|
|
| Notes | exFAT Access is purchased separately in Package Center. | |
Appearance |
Form Factor (RU) | 1U |
| Size (Height x Width x Depth) | 44 mm x 480 mm x 492.6 mm 44 mm x 480 mm x 518.6 mm (for RP model) |
|
| Weight | 6.4 kg 7.96 kg (for RP model) |
|
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit -RKM114/RKS1317) | |
| Notes | The rail kit is sold separately | |
Others |
System Fan | 40 mm x 40 mm x 3 pcs 40 mm x 40 mm x 2 pcs (for RP model) |
| Fan Speed Mode |
|
|
| Power Recovery | ||
| Noise Level* | 27 dB(A) 39.9 dB(A) (for RP model) |
|
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 150 W | |
| Redundant Power Supply | yes (for RP model) | |
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 37.94 W (Access) 20.96 W (HDD Hibernation) 38.88 W (Access) (for RP model) 22.17 W (HDD Hibernation) (for RP model) |
|
| British Thermal Unit | 129.54 BTU/hr (Access) 71.57 BTU/hr (HDD Hibernation) 132.75 BTU/hr (Access) (for RP model) 75.70 BTU/hr (HDD Hibernation) (for RP model) |
|
| Notes |
|
|
Temperature |
Operating Temperature | 0C to 35C (32F to 95F) |
| Storage Temperature | -20C to 60C (-5F to 140F) | |
| Relative Humidity | 5% to 95% RH | |
Certification |
|
|
Warranty |
3-year hardware warranty, extendable to 5-year coverage -EW202 | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt.(Learn more) | |
Environment |
RoHS Compliant | |
Packaging Content |
|
|
Optional Accessories |
|
|
| Notes | This model does not support the ECC feature, regardless of whether the expansion memory is ECC or non-ECC. | |
