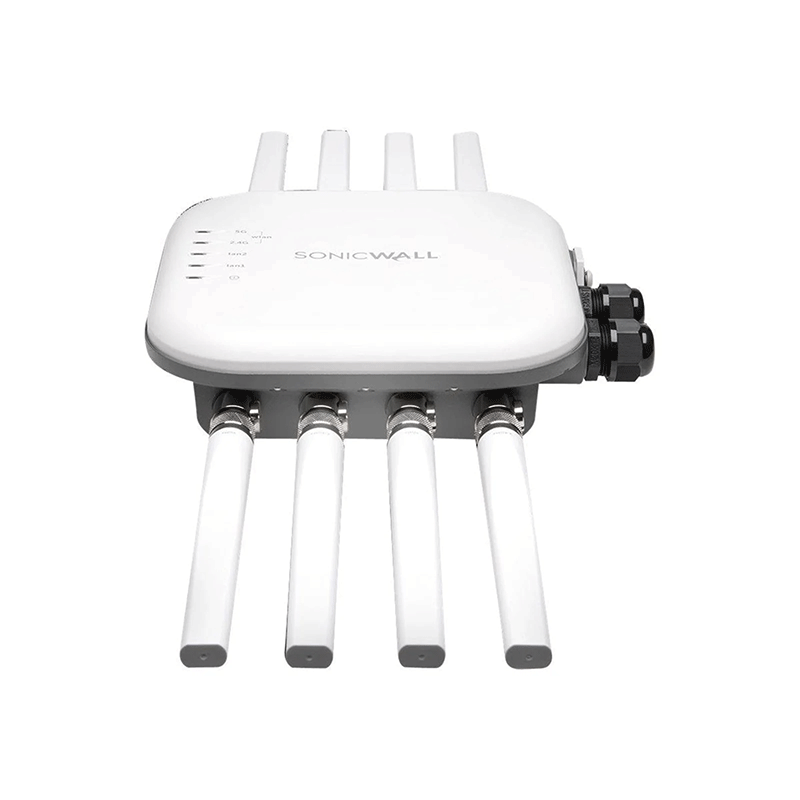

SonicWall SonicWave 432o – (02 SSC 2675)

Description Overview

The SonicWall SonicWave 432o (02‑SSC‑2675) is a rugged outdoor Wi‑Fi access point that delivers high‑speed IEEE 802.11ac (Wi‑Fi 5) wireless connectivity with up to ~1.7 Gbps throughput. It features dual‑band (2.4 GHz/5 GHz) radios with 4×4 MU‑MIMO, an industrial‑grade IP67‑rated enclosure for harsh outdoor environments, and multi‑gigabit wired uplinks, including a 2.5 GbE PoE+ port for flexible deployment and centralized management.

Key Specifications

• Model / Manufacturer: SonicWall, Part Number 02‑SSC‑2675

• Wireless Standard: IEEE 802.11ac (Wi‑Fi 5)

• Max Throughput: ~1.69 Gbit/s total across radios

• Frequency Bands: Dual‑band — 2.4 GHz & 5 GHz

• MU‑MIMO: Yes, 4×4 MU‑MIMO for efficient multi‑client performance

• Beamforming: Supported (improves signal strength to clients)

• Ethernet Ports:

  • 1 × 2.5 GbE (PoE+ capable)

  • 1 × 1 GbE

  • Management (console) port

• PoE Support: 802.3at PoE+ (power over Ethernet)

• Mounting: Can be wall or ceiling mounted, and is designed for outdoor setup.

• Environmental & Durability: Outdoor‑rated enclosure, tough design for weather exposure (IP67 rated on many builds)

• Client Capacity: Supports multiple SSIDs and up to ~1000+ clients (varies by management configuration)

Features & Use Case

• Outdoor‑ready: Built to withstand temperature swings and moisture — ideal for campuses, outdoor venues, parking lots, etc.

• Integrated Security: Works with SonicWall Wireless Network Manager and integrates with SonicWall firewalls for enhanced wireless threat prevention.

• Managed Deployment: Centralized configuration and monitoring are possible via SonicWall’s management tools.

Physical / Misc Details

• Dimensions: ~241 × 236 × 60 mm (W×D×H)

• Weight: ~2.2 kg / ~4.85 lb

• Mount Kit Included: Yes, typically wall/ceiling mounting hardware.

Advantages

Here are the key advantages of the SonicWall SonicWave 432o (02‑SSC‑2675) outdoor wireless access point:

High‑Performance Wi‑Fi

• 802.11ac Wave 2 technology offers fast wireless speeds and improved throughput for bandwidth‑intensive applications such as streaming, cloud access, and large file transfers.

• 4×4 MU‑MIMO supports simultaneous data streams to multiple clients, improving performance in high‑density environments.

• Beamforming and band steering help focus signal strength and distribute connections efficiently.

Robust Outdoor Design

• Industrial‑grade, IP67‑rated enclosure protects against dust and water immersion, making it suitable for harsh outdoor conditions.

• Waterproof connectors and rugged construction extend durability and longevity.

Enhanced Security

• Dedicated third radio continuously scans for rogue access points and wireless threats, improving network safety.

• Can integrate with SonicWall firewalls for deep packet inspection and unified security policy enforcement.

Simplified Deployment & Management

• Zero‑Touch Deployment allows auto‑provisioning and rapid setup with minimal manual configuration.

• Centralized control via SonicWall Wireless Network Manager or management through SonicWall firewalls provides a single interface for monitoring and updates.

Flexible Connectivity

• Multi‑gigabit 2.5 GbE uplink port ensures high‑speed wired backhaul to support total wireless throughput.

• PoE+ support (Power over Ethernet) simplifies installation by eliminating the need for nearby power outlets.

Scalability & Reliability

• Designed to extend wireless coverage outdoors, ideal for campuses, parks, venues, and outdoor workspaces.

• Features like AirTime Fairness and intelligent band management help maintain consistent performance for all users.
