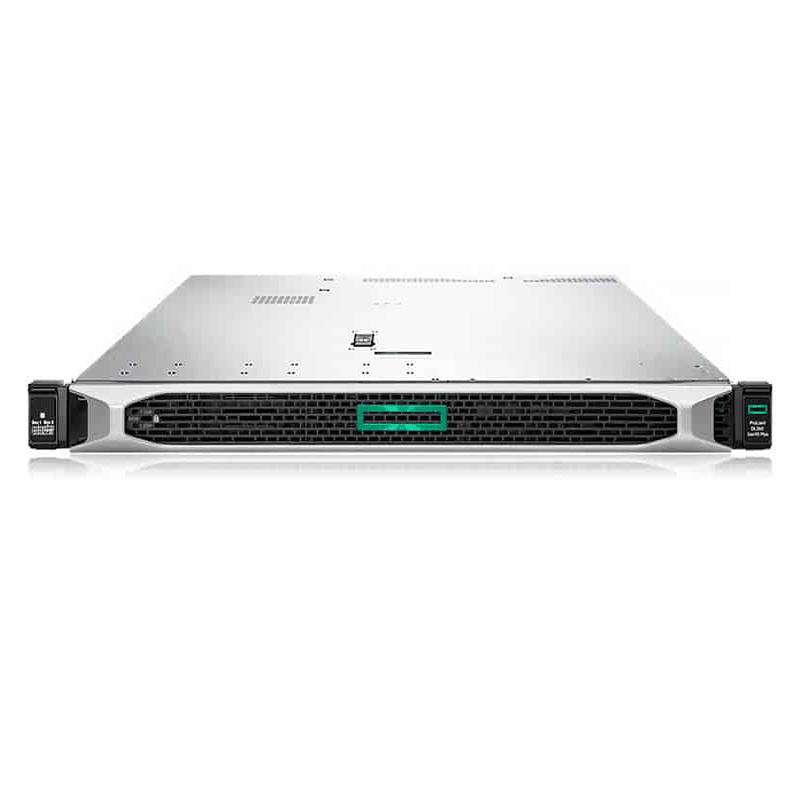

HPE ProLiant DL360

HPE ProLiant DL360 Gen10 Plus – 4 Bay LFF 4x 3.5 Drive bays. Dual Xeon Gen3 Processor Server. 2x PCIE Slots.

Description

The HPE ProLiant DL360 Gen10 Plus – 4 Bay LFF Rackmount Server is a compact, high-performance 1U server designed for data centers and enterprise environments that demand scalability, security, and efficient compute power.

This system runs on two powerful 3rd Gen Intel Xeon Scalable processors, with options that include Gold, Platinum, or Silver models. It can handle up to 32 memory modules, supporting various types like RDIMMs, LRDIMMs, Intel Optane Persistent Memory, and HPE DDR4 kits. For connectivity and expansion, it offers two PCI slots that can be customized with a wide range of network adapters—from basic 1 Gigabit to ultra-fast 200 Gigabit options—as well as support for InfiniBand, Fibre Channel, and converged network adapters.

Server Overview

• Model: HPE ProLiant DL360 Gen10 Plus
• Form Factor: 1U Rackmount
• Drive Bays: 4x LFF (Large Form Factor) 3.5″ hot-swap drive bays
• Processor Support: Dual-socket support for 3rd Gen Intel® Xeon® Scalable processors (up to 40 cores per CPU)
• Memory Capacity: Up to 6 TB per socket using DDR4 RDIMM and Intel® Optane™ Persistent Memory

Storage & Expansion

• Storage Options: Supports SAS/SATA HDDs or SSDs; Tri-mode controllers allow NVMe/SAS/SATA configurations
• Expansion Slots: Up to 3 PCIe Gen4 slots for high-speed I/O and additional components
• Embedded Storage Controller: SATA controller with AHCI or SR100i modes

Security Features:

• • UEFI Secure Boot
  • Intel® SGX (Software Guard Extensions)
  • HPE Silicon Root of Trust
  • TPM, chassis intrusion detection, and bezel locking kits

Management Tools:

• • HPE iLO Standard (embedded)
  • Optional HPE iLO Advanced and HPE OneView Advanced

Dimensions & Warranty

• Size (LFF): 4.29 x 43.46 x 80.01 cm
• Weight: 13.77 kg to 16.78 kg
• Warranty: 3 years parts, labor, and onsite support

Ideal Applications

Here are some key use cases where this server excels:

1. Virtualization & Containerization

• Supports VMware, Hyper-V, and container platforms like Docker and Kubernetes
• High core count and memory capacity make it ideal for running multiple virtual machines or containers simultaneously

2. Database Hosting

• Suitable for SQL, NoSQL, and in-memory databases
• High I/O throughput and memory bandwidth support intensive read/write operations

3. Security & Network Services

• Can host firewalls, intrusion detection systems, and VPN services
• PCIe slots allow for high-speed network adapters (1G/10G/25G/100G)

4. Data Analytics & Business Intelligence

• Handles real-time analytics, reporting, and data warehousing
• Compatible with platforms like Apache Hadoop, Spark, and Power BI

5. Scientific & Engineering Workloads

• Ideal for simulation, modeling, and research computing
• Supports high-performance computing (HPC) environments with InfiniBand and Fibre Channel options

6. Enterprise IT Infrastructure

• Domain controllers, file servers, email servers, and backup systems
• Reliable and scalable for small to large enterprise environments

7. Web Hosting & Application Servers

• Hosts websites, APIs, and enterprise applications
• Compatible with Linux, Windows Server, and other OS platforms

8. Expandability & Features

• Memory: Up to 32 DIMMs including RDIMMs, LRDIMMs, and Intel Optane Persistent Memory
• Storage: 4x 3.5″ drive bays for HDDs or SSDs
• Networking: PCIe slots support a wide range of Ethernet adapters
• Management: Integrated HPE iLO for remote server management
