FAP-234G-E – Fortinet FortiAP 234G

Description Overview

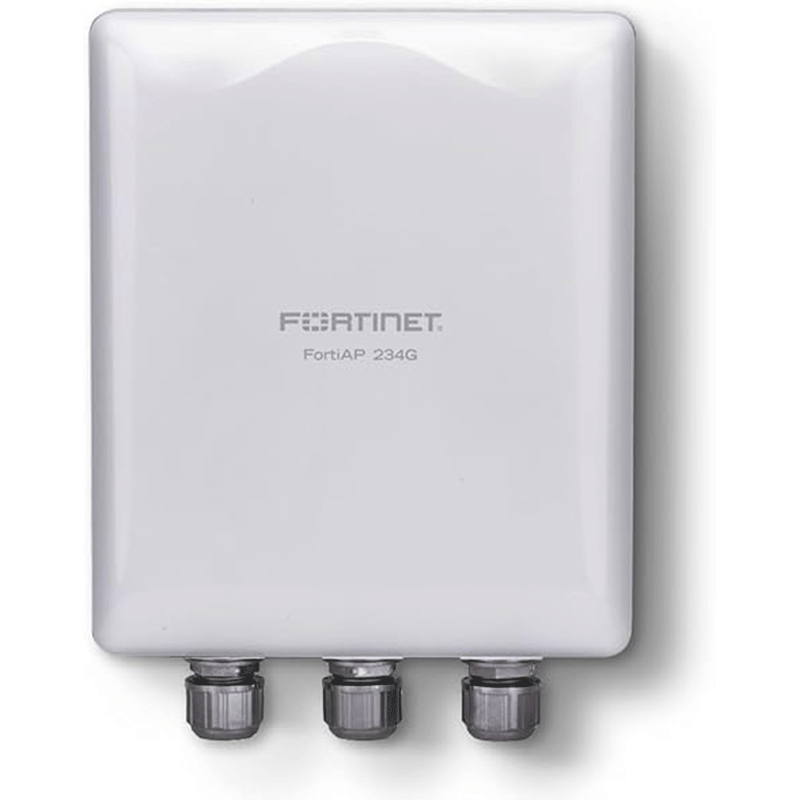

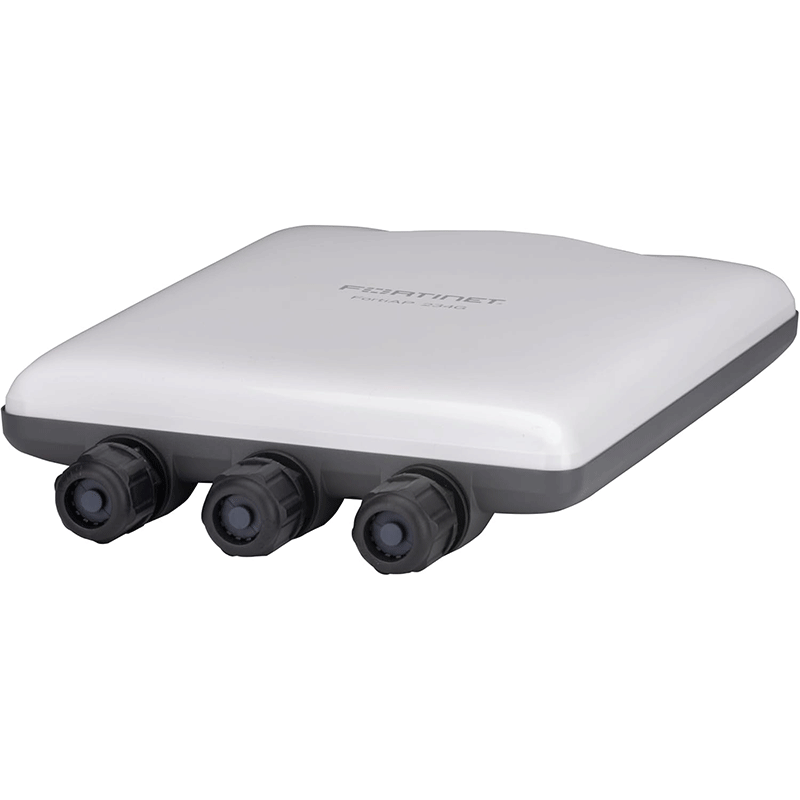

The Fortinet FortiAP 234G (FAP-234G-E) is an enterprise-grade outdoor wireless access point designed for modern Wi-Fi networks with Wi-Fi 6E (802.11ax) support. It’s part of Fortinet’s FortiAP series and is typically used in demanding environments — such as campuses, large offices, industrial sites, and outdoor spaces — where reliable, high-speed wireless connectivity and strong security integration are needed.

Key Specifications & Features

General

• Device: Outdoor wireless access point (Wi-Fi 6E / Tri-band)

• Part Number: FAP-234G-E (Region-specific variant)

• Form Factor: Wall / pole mountable (indoor/outdoor)

• Ruggedized design for outdoor environments

📶 Wireless Specifications

• Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

• Tri-band radios:
  • 2.4 GHz band
  • 5 GHz band
  • 6 GHz band

• Number of radios: 3 + 1 BLE (Bluetooth Low Energy)

• Maximum throughput (approx):
  • 2.4 GHz: ~574 Mbps
  • 5 GHz: ~1201 Mbps
  • 6 GHz: ~2401 Mbps

• MU-MIMO (2×2) & OFDMA support

• Supported SSIDs: up to 24

• Wireless clients per radio: up to 512

📡 Antenna

• Total antennas: 10 integrated
  • 2× 2.4 GHz
  • 2× 5 GHz
  • 2× 5/6 GHz dual-band
  • 2× scanning antennas
  • 1× BLE
  • 1× GPS

• Antenna type: Cross-dipole with varying peak gains per band

🔌 Ports & Interfaces

• 2× RJ45 network ports:
  • 1× 2.5 GbE
  • 1× 1 GbE

• USB Type-A port (for storage/extension)

• RS-232 console (RJ45) port

• Bluetooth Low Energy (BLE) radio

• GPS antenna for location features

Networking & Security

• Data Link protocols: Ethernet / Fast / Gigabit / 2.5 Gigabit & Wi-Fi (802.11a/b/g/n/ac/ax)

• Encryption & authentication: WPA/WPA2/WPA3, 802.1X, Captive Portal, etc.

• Wireless intrusion detection / prevention, spectrum analysis, packet sniffer mode (feature dependent)

Power

• PoE support: PoE++ (802.3bt) recommended for full power of all radios

• AC power support (via included injector)

Physical

• Dimensions: ~21.6 cm × 25.8 cm × 5.73 cm †

• Weight: ~1.38 kg †

• Mount kit included (pole/wall)

Performance / Features Summary

• Tri-band Wi-Fi 6E with BLE & GPS radios

• High capacity: up to 512 clients per radio

• Integrated security scanning and intrusion tools

• Designed for dense environments, outdoor coverage, and advanced RF environments

Robust connectivity

Equipped with Bluetooth Low Energy (LE), Zigbee, and a wide range of Wi-Fi bands, including 2.4 GHz, 5 GHz, and 6 GHz, this wireless access point ensures comprehensive coverage and compatibility with a multitude of devices and networks.

Enhanced security

Featuring advanced encryption algorithms such as WEP, WPA, WPA2, and WPA3, alongside multiple authentication methods including EAP-TLS, EAP-FAST, and more, the Fortinet FortiAP 234G provides a secure and reliable network environment.

High performance

With maximum throughput capabilities of 574 Mbps on the 2.4 GHz band, 1201 Mbps on the 5 GHz band, and support for Wi-Fi 6 technology, this device offers high speed and efficiency for handling high-bandwidth applications.

Innovative features

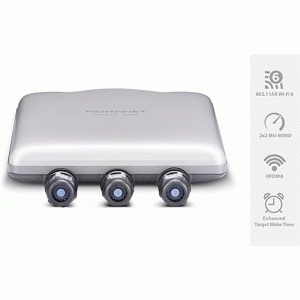

This model boasts unique features such as 2×2 MU-MIMO technology, BSS Coloring, and Target Wake Time (TWT), enhancing network efficiency, reducing interference, and improving power management for connected devices.

Durable design

Designed for both indoor and outdoor use, the Fortinet FortiAP 234G is built to withstand a variety of environmental conditions, ensuring reliable operation and longevity.

Applications

• Enterprise campuses – outdoor Wi-Fi coverage between buildings and across large corporate grounds

• Branch offices – secure, centrally managed wireless access

• Universities & schools – outdoor learning areas, courtyards, and campus walkways

• Public venues – stadiums, event spaces, convention centers, and auditoriums

• Industrial environments – factories, warehouses, and logistics centers requiring rugged Wi-Fi

• Transportation areas – parking lots, transit stations, ports, and terminals

• Hospitality – hotels, resorts, and large properties with indoor/outdoor guest Wi-Fi

• Retail & smart spaces – BLE-based location services, asset tracking, and proximity marketing

• Outdoor public Wi-Fi – parks, plazas, and municipal areas

• Secure network extensions – SD-Branch deployments integrated with FortiGate and Fortinet Security Fabric
