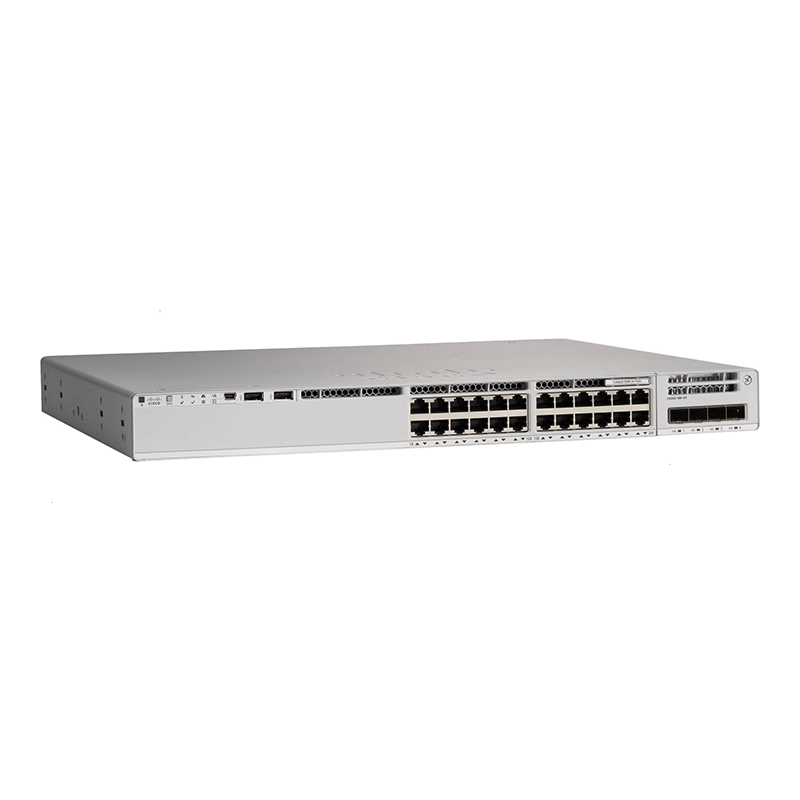

Cisco C9200L-24P-4G-E Catalyst 9200 Network Essentials Switch

C9200L-24P-4G-E is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

• Ports: 24 × 10/100/1000 PoE+ downlink ports
• Uplinks: 4 × 1G fixed uplink ports
• Power Supply: Comes with PWR-C5-600WAC (600W AC)
• Fans: Fixed redundant fans for added resiliency
• Software: Runs on Cisco Software-Defined Access (SD-Access)
• ◦     Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
• ◦     Network assurance and improved resolution time through Cisco DNA Center™
• Stacking Bandwidth: 80 Gbps with optional StackWise-80 kit
• Memory: 2 GB DRAM, 4 GB Flash
• Switching Capacity: 56 Gbps
• Forwarding Rate: 83.33 Mpps
•   UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
•  Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
•  Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• Advanced network monitoring using Full Flexible NetFlow
• Plug and Play Enabled: Eases the deployment of new branch or campus devices and updates to existing networks with a simple, secure, unified, and integrated approach.
• Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
• ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Power supplies

Cisco Catalyst 9200 Series switches support dual field-replaceable power supplies. Each switch ships with one default power supply, and a second identical power supply can be purchased with the initial order or can be added at a later time. The second power supply can provide redundancy or additional power to PoE+ ports as needed.

Intelligent PoE+

●      IEEE 802.3at PoE+ (up to 30W per port) is supported on Cisco Catalyst 9200 Series switches with Full PoE+ Support Powers devices like IP phones, cameras, and wireless access points directly through Ethernet to lower the total cost of ownership for deployments. PoE+ removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. With Cisco Catalyst 9200 Series switches, PoE+ power allocation is dynamic, and power mapping scales up to a maximum of 30W of PoE+ power.

●      PoE Powered Device (PD) – Catalyst 9200CX-12T-2X2G can be powered through the uplink with IEEE 802.3bt class 6 or UPOE+ power from upstream switch.

●      Perpetual PoE is supported on Cisco Catalyst 9200 Series switches, and maintains the PoE+ power during a switch reload. This is important for critical endpoints such as medical devices and for Internet of Things (IoT) endpoints such as PoE-powered lights, so that there is no disruption during a switch reboot.

●      Fast PoE: When power is restored to a switch, Fast PoE starts delivering power to endpoints without waiting for the operating system to fully load, thereby speeding up the time for the endpoint to start up.

Stacking

Cisco Catalyst 9200 Series switch models are designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 384 access ports.

Stacking Capabilities of C9200L-24P-4G-E

• Stacking Support: the C9200L series supports stacking using Cisco StackWise-80 technology.
• Maximum Stack Members: You can stack up to 8 switches in a single stack.
• Stacking Type: Only homogeneous stacking is supported—meaning all switches in the stack must be from the same series (i.e., all 9200L models).
• Stacking Ports: These switches use StackWise-80 ports for stacking, which are located on the back of the device.
• License Compatibility: All switches in the stack must run the same license level and compatible software versions

point to note: You cannot mix C9200L switches with standard C9200 switches in a stack.

Fan

Cisco Catalyst 9200 Series switches are equipped with two fans to ensure redundancy. These switches maintain system reliability through dual fan support. For the C9200 models, the fan modules can be replaced on-site, while the C9200L models have non-removable fan units.

 Warranty Coverage

The Cisco C9200L-24P-4G-E switch typically comes with an Enhanced Limited Lifetime Warranty (E-LLW), which includes:

• Hardware replacement: Available through Cisco’s warranty program
• Lifetime coverage: Valid for as long as the original customer owns the product
• Next Business Day (NBD) replacement: For eligible failures, depending on location and availability
• 90-day software warranty: Covers bug fixes and updates for Cisco IOS software
