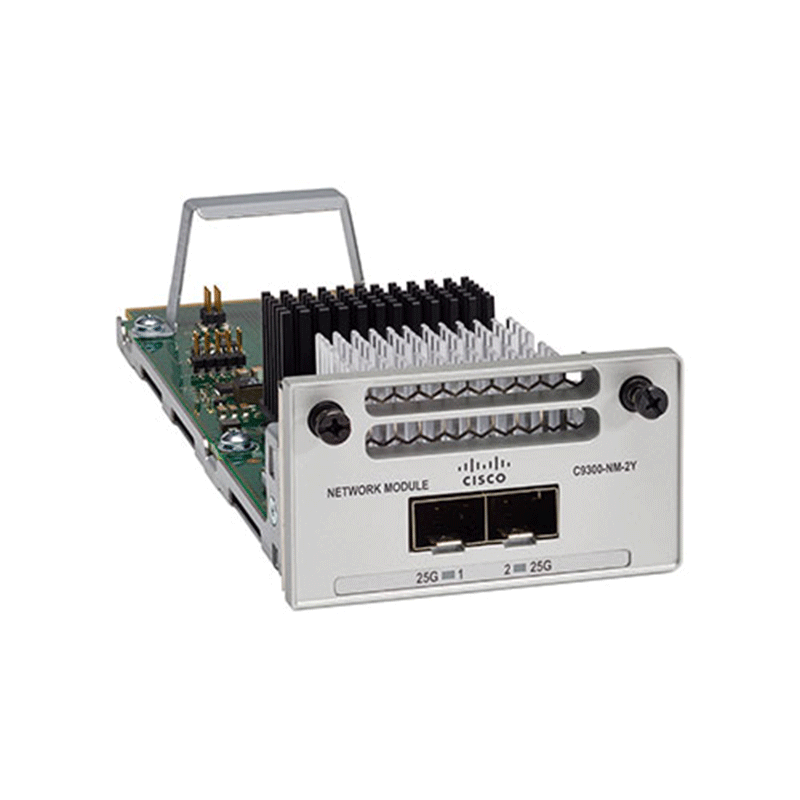

C9300-NM-2Y

The Cisco C9300-NM-2Y is a plug-and-play module that enables faster uplink speeds compared to traditional 10G modules great for organizations upgrading to Wi-Fi 6, cloud-first architectures, or high-performance campus networks. It features two 25G SFP28 uplink ports, giving your network a serious speed boost that is perfect for modern setups that need faster data flow between core systems. Whether you’re connecting data centers, linking distribution layers, or supporting heavy wireless traffic, this module handles it all. And since it supports 25G speeds, it helps keep your network ready for the future without needing to overhaul your existing switch setup.

Key Features and benefits

Flexible Multi-Speed Support: Supports 25G, 10G, and 1G speeds via SFP28 ports, enabling seamless integration with a wide range of network environments

High Uplink Bandwidth: Provides up to 50 Gbps aggregate uplink capacity (2 × 25G), suitable for high-throughput access or aggregation layers.

Hot Swappable Design: Fully hot-swappable, allowing installation or replacement without powering down the switch or disrupting network operations.

Investment Protection: Enables a non-disruptive upgrade path from 1G/10G to 25G without replacing the base switch, preserving infrastructure investment.

Broad Transceiver Compatibility: Compatible with a wide variety of Cisco-approved SFP/SFP+/SFP28 optical modules and cables allowing flexible connectivity options.

Optimized for Catalyst 9300 Series: Purpose-built for Cisco Catalyst 9300 (non-X) switches, ensuring seamless hardware and software integration within enterprise access networks.

Enhanced Security: Features Cisco TrustSec for data integrity and threat defense.

Energy Efficiency: Smart power management reduces operational costs.

Applications Scenarios

Campus Core Uplink: Great for connecting multiple access switches to distribution or core layers with 25G uplinks in a campus setup fast, stable, and fiber-ready.
Hybrid Data Center Aggregation: Perfect for aggregating high-throughput fiber links between servers and distribution switches. Thus, Secures and high-speed uplinks for cloud-hosted applications, with support for IPsec tunnels and AES-256 encryption
High-Security Environments: Ideal for places that avoid copper ports, like government or finance thanks to full SFP support.

The Foundation of Software-Defined access

The Cisco Catalyst C9300-NM-2Y switch is a key component in Cisco’s vision for Software-Defined Access (SD-Access) which is a modern approach to enterprise networking that emphasizes automation, security, and scalability. SD-Access fabric enables policy-based automation from edge to cloud with foundational capabilities. These include:

Simplify network operations
Unified management of wired and wireless networks
Network virtualization and enhance security through policy-based segmentation
Group-based policies
Context-based analytics
Provide consistent user experience across wired and wireless networks

Cisco Catalyst, Cisco DNA and Meraki Software

The Cisco Catalyst C9300-NM-2Y is a powerful switch designed for enterprise-grade access networking, and it integrates with both Cisco DNA and Meraki software platforms depending on your deployment needs. The “2Y” indicates it has two 25G SFP28 uplink ports, ideal for high-speed connectivity in enterprise environments. These modules are hot-swappable and provide flexibility in uplink configurations. At each stage in the product lifecycle, Cisco Catalyst, Cisco DNA and Meraki Software helps make buying, managing, and upgrading your network and infrastructure software easier. Cisco software provides:

Flexible licensing models to smoothly distribute customers’ software spending over time.
Investment protection for software purchases through software services–enabled license portability.
Access to updates, upgrades, and new technology from Cisco through Cisco Software Support Services (SWSS).
Lower cost of entry with the new Cisco Catalyst Software Subscription for Switching support model.
Choose what management model works best for you – on-premises, virtual or in the cloud.
Access to end-to-end network visibility with Cisco Spaces, service assurance through Cisco ThousandEyes Network and Application Synthetics and Cisco ASAc firewall (with Cisco Catalyst and Cisco DNA Advantage licenses).

Network Modules

Cisco Catalyst 9300 Series switches (C9300X and C9300 SKUs) support optional network modules for uplink ports. These modules offer flexibility for uplink speeds ranging from 1G to 40G, including multigigabit options for high-performance environments. The default switch configuration does not include the network module.

Power supplies

The Cisco C9300-NM-2Y is a network module designed for the Catalyst 9300 Series switches, specifically offering 2 x 25G SFP28 uplink ports. It doesn’t have its own power supply—instead, it relies on the switch chassis it’s installed in.

Note:

You can install one or two power supply modules in the switch.
If only one is installed, the second slot should be covered with a blank plate.
Power stacking is supported via StackPower, allowing switches to share power across the stack.

Stacking

The NM-2Y module is not used for stacking, but for uplink connectivity to other network devices. Stacking is handled via dedicated StackWise ports on the Catalyst 9300 switches and not through the NM-2Y module.

If you’re planning a deployment and want both stacking and high-speed uplinks, you’ll typically:

Use StackWise ports for stacking.
Use C9300-NM-2Y for uplinks to aggregation or core switches.

Fan

Cisco Catalyst 9300 Series switches also come with three field-replaceable fans and support (N+1) redundancy.

Fan Module Details for Catalyst 9300 Series

The C9300 series switches, including those using the C9300-NM-2Y module, come with three field-replaceable fan modules.
These fans support N+1 redundancy, meaning the system can tolerate one fan failure without impacting performance.
The standard fan module part number is FAN-T2=, which is compatible across various Catalyst 9300 model

Security

Security Features of C9300-NM-2Y

Built for Secure Networking: The 9300 Series is Cisco’s lead stackable platform for secure access, supporting Software-Defined Access (SD-Access), which enables policy-based automation and segmentation.
Trustworthy Hardware: Includes Secure Boot Ensures that only trusted software is loaded during startup, preventing unauthorized firmware or software from compromising the system and image signing, ensuring only trusted software runs on the device.
MACsec Encryption: Supports IEEE 802.1AE MACsec, providing line-rate Layer 2 encryption for secure data transmission.
Advanced Threat Protection: Integrates with Cisco DNA Center and Cisco Identity Services Engine (ISE) for dynamic policy enforcement and threat containment.
Network Visibility: Offers Encrypted Traffic Analytics (ETA) to detect malware in encrypted traffic without decryption.
ACL and QoS Scaling: Supports up to 5120 ACL entries, allowing granular traffic control and prioritization

Resiliency and high availability

Resiliency Features

Cisco StackWise® Technology: Supports stacking of up to 8 switches with sub-50-ms failover, enabling seamless redundancy and simplified management.
Stateful Switchover (SSO): When stacked, switches can perform nonstop forwarding during a failover event, preserving sessions and minimizing downtime.
Cisco StackPower: Allows power sharing and redundancy across the stack, ensuring uninterrupted operation even if one power supply fails.
Modular Uplinks: Offers flexibility and redundancy in uplink configurations, helping maintain connectivity during link failures.

High Availability Capabilities

Cisco IOS XE Operating System: A modern, modular OS that supports hot patching and advanced programmability, reducing the need for disruptive reboots.
UADP 2.0 Architecture: Enables high throughput and scalability, ensuring the switch can handle demanding workloads without performance degradation.
Advanced QoS and Traffic Management: Intelligent services like granular bandwidth control and traffic prioritization ensure consistent performance even under load

Warranty

The Cisco Catalyst MACsec Encryption switch comes with a limited lifetime warranty

Warranty Coverage

Hardware Replacement: Cisco will replace defective hardware for as long as the product is owned by the original end user.
Advance Replacement: Replacement units are shipped in advance to minimize downtime.
90-Day Software Warranty: Covers defects in software media and documentation.
Access to Updates: Includes bug fixes and minor software updates for the Network Essentials license.
