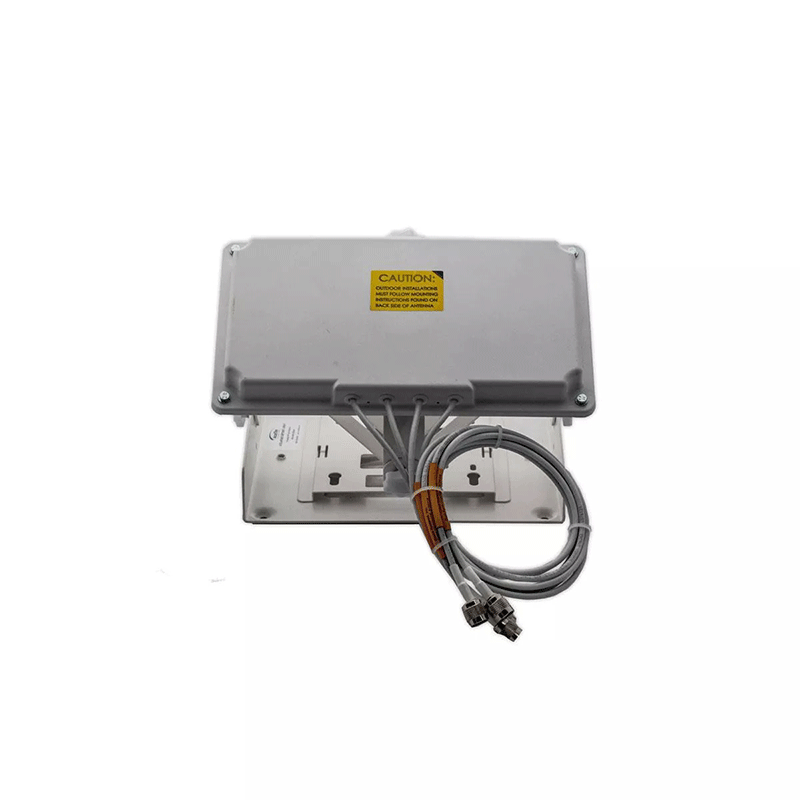

CISCO Access point AIR-ANT2566P4W-R

Cisco is proud to present the AIR-ANT2566P4W-R, a high-performance directional antenna designed for optimal wireless connectivity. With a frequency range of 2.4 GHz and 5 GHz, this antenna provides a gain of 6 dBi for both bands, ensuring a strong and stable connection. The AIR-ANT2566P4W-R features four ports and RP-TNC connectors, offering even greater flexibility in your network setup with a focus on its MIMO (Multiple-Input, Multiple-Output) 4-element configuration for both 2.4 GHz that provides extended coverage but may be prone to interference from other devices using the same frequency, such as microwaves and cordless phones and 5 GHz frequency offers faster data rates and is less congested than the 2.4 GHz band. It is particularly beneficial in environments with multiple wireless networks.

Product Features

• High-performance antenna for optimal wireless connectivity
• Dual band (2.4 GHz/5 GHz) for wider coverage
•  6 dBi gain for increased signal strength
• Four ports for flexible network configuration
• RP-TNC connectors for compatibility with various devices

Unveiling MIMO TechnologyMIMO: MIMO technology is a cornerstone of modern wireless communication systems. It involves the use of multiple antennas at both the transmitter and receiver ends to improve data throughput and reliability. The acronym stands for Multiple-Input, Multiple-Output, reflecting the simultaneous transmission of multiple data streams.

Significance of MIMO in Cisco AIR-ANT2566P4W-R:

• Higher reliability / better signal stability: Multiple antennas let the system pick the best path(s), reducing effects of fading or dead zones. If one antenna element experiences poor reception due to obstruction or multipath cancellation, another might still get a good signal.
• Better range / coverage: Because of how MIMO + antenna gain combines, the effective signal can reach further, or maintain quality further away. Also array gain can help improve signal to noise ratio (SNR)
• Better performance in dual‑band: Since it works on both 2.4 GHz and 5 GHz, MIMO helps to mitigate each band’s weaknesses. 2.4 GHz has better penetration, 5 GHz has more capacity but more sensitivity to obstacles. Using multiple elements helps adapt more flexibly.

Key Features of Cisco AIR-ANT2566P4W-RMIMO Technology

4‑Element Dual‑Band MIMO Design: It uses 4 separate radiating elements that work in both the 2.4 GHz and 5 GHz bands. This enables multiple spatial streams, diversity, and overall more robust performance.

Connector / Cable: Uses RP‑TNC connectors; cable length about 3 ft (~91.4 cm). Good cable length for mounting flexibility without severe loss if placed properly.

Increased Range and Coverage: Breaking the Boundaries: The AIR-ANT2566P4W-R’s 4-element design is a testament to its commitment to providing users with unparalleled wireless experiences. The strategic arrangement of elements within the antenna contributes to a substantial increase in both range and coverage. Users can now connect to the wireless network from greater distances, breaking free from the constraints imposed by conventional antennas.

Breaking Down the 4-Element Design: Each element within the antenna serves a specific purpose, collectively contributing to the extended range and coverage. By intelligently distributing the workload among these elements, the antenna ensures that dead spots are minimized, offering a seamless and uninterrupted wireless experience.

Improved Reliability

The AIR‑ANT2566P4W‑R improves reliability via its MIMO architecture: it provides array gain, diversity gain, and multiplexing gain, which together make connections more stable, reduce deep fades, help in adverse RF conditions, and allow higher throughput under challenging situations.

• Navigating the Challenges of Wireless Environments: In the unpredictable realm of wireless networking, reliability is non-negotiable. The AIR-ANT2566P4W-R is meticulously crafted to provide robust and reliable wireless connectivity. This commitment translates into a noticeable reduction in the risk of signal dropouts and lost connections, offering a stable foundation for mission-critical applications and services.
• Building Robust Connections: Wireless environments are often rife with interference and obstacles that can disrupt connectivity. The AIR-ANT2566P4W-R employs advanced technologies to mitigate these challenges, ensuring that the signal remains steadfast even in the face of adverse conditions. This enhanced reliability is a game-changer for businesses and organizations relying on a resilient wireless infrastructure.
• Orientation and installation guidelines: Cisco specifies mounting with cables pointing downwards, orienting the antenna properly, keeping the antenna away from large metal obstructions, etc. These reduce environmental / multipath interference issues.

Compatibility with Cisco Wireless Solutions

• A Seamless Integration Experience: In the pursuit of a cohesive wireless ecosystem, compatibility is paramount. The AIR-ANT2566P4W-R seamlessly integrates with Cisco Aironet wireless access points, routers, and bridges. This compatibility ensures that users can leverage the full potential of the antenna within their existing Cisco wireless networks without any complications.
• Plug-and-Play Integration: The compatibility with Cisco wireless solutions extends beyond a mere technical aspect. The AIR-ANT2566P4W-R is designed for a plug-and-play integration experience, minimizing the complexities associated with adopting new hardware. This ensures that businesses can swiftly incorporate the antenna into their existing infrastructure, reaping the benefits without disruptions.
• Cisco AIR-ANT2566P4W-R Aironet Antenna Specifications Physical Characteristics: The physical design of the AIR-ANT2566P4W-R is engineered for durability and performance. It typically features a weather-resistant casing, making it suitable for both indoor and outdoor installations. The antenna’s dimensions, weight, and mounting options contribute to its versatility in deployment.
• Gain and Beamwidth: Gain refers to the ability of an antenna to focus energy in a particular direction, influencing signal strength. The AIR-ANT2566P4W-R is known for its high gain, enhancing the reach of wireless signals. Additionally, understanding the antenna’s beamwidth is crucial for determining the coverage area. The specifications of the AIR-ANT2566P4W-R in terms of gain and beamwidth are critical considerations for network planners and administrators.
• Cabling and Connectors Type: The type of connector used in an antenna is a vital aspect when integrating it into a wireless network. Cisco AIR-ANT2566P4W-R commonly employs standard connectors compatible with Cisco’s Aironet series and other networking equipment.
• Mechanical / Environmental
  IP rating (IP54), temperature range, mounting orientation (arrow pointing up, cables pointing down) etc. are relevant especially for outdoor or harsh environments to ensure longevity and reliability.

Product Applications

• Wireless network deployments in large office buildings
• Outdoor Wi-Fi coverage in campuses or public areas
•  Point-to-point or point-to-multipoint wireless connections
