Cisco Catalyst C9200L-24T-4G-E

Cisco Catalyst C9200L-24T-4G-E

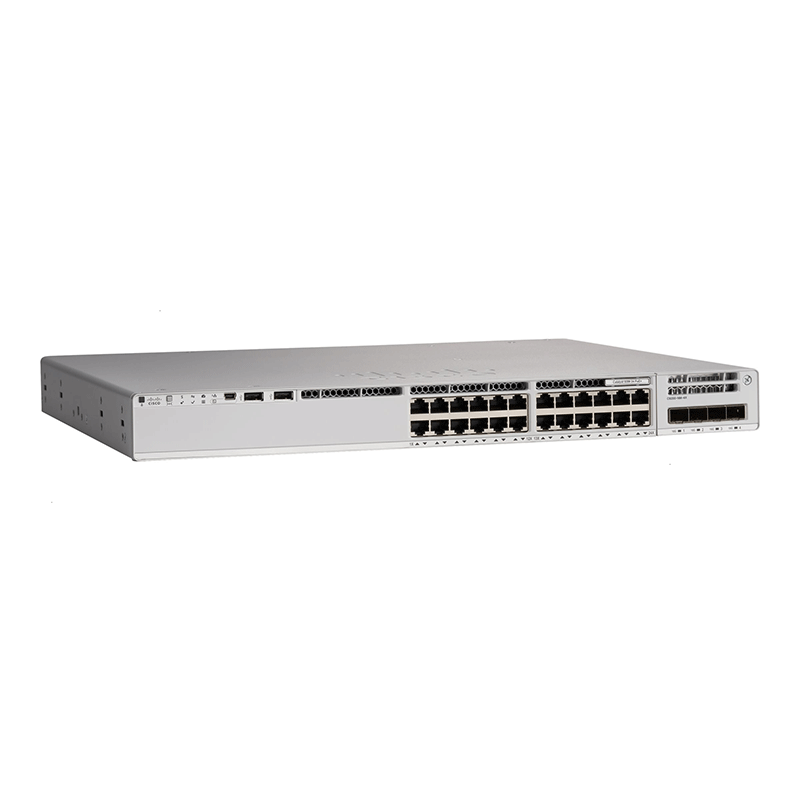

C9200L-24T-4G-E is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

• Ports: 24 × 10/100/1000 PoE+ downlink ports
• Uplinks: 4 × 1G fixed uplink ports
• Redundant fixed fans and PWR-C5-125WAC power supply
• Power and Flexibility: Up to 48 ports of full PoE+ capability and 4x10G uplink options cater to a variety of devices and applications, ensuring high-speed connectivity and energy efficiency.
• Resilience: Features like Field-Replaceable Units (FRU), redundant power supply, and fans, along with modular uplinks, ensure your network remains operational and reliable.
• Operational Efficiency: Optional backplane stacking with up to 80 Gbps bandwidth enhances performance and simplifies management.
• Security and Compliance: Advanced security features including AES-128 MACsec encryption and policy-based segmentation protect your network from threats.
• Simplified Management: Cisco DNA Center and SD-Access offer streamlined operations and deployment, from automated policy application to network assurance.
• Next-Generation Technology: Equipped with UADP 2.0 Mini ASIC, Cisco IOS XE, and support for programmable network capabilities, this switch is ready to handle future networking demands
• Software: Runs on Cisco Software-Defined Access (SD-Access)◦     Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)◦
• Memory: 2 GB DRAM, 4 GB Flash
•  Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• Advanced network monitoring using Full Flexible NetFlow
• Plug and Play Enabled: Eases the deployment of new branch or campus devices and updates to existing networks with a simple, secure, unified, and integrated approach.

Power supplies

The Cisco Catalyst C9200L-24T-4G-E switch comes with a default primary AC power supply model: PWR-C5-125WAC. Supports full PoE+ across all 24 ports, ideal for powering devices like IP phones, wireless access points, and security cameras.

Intelligent PoE+

●      IEEE 802.3at PoE+ (up to 30W per port) is supported on Cisco Catalyst 9200 Series switches with Full PoE+ Support Powers devices like IP phones, cameras, and wireless access points directly through Ethernet to lower the total cost of ownership for deployments. PoE+ removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. With Cisco Catalyst 9200 Series switches, PoE+ power allocation is dynamic, and power mapping scales up to a maximum of 30W of PoE+ power.

●      PoE Powered Device (PD) – Catalyst 9200 can be powered through the uplink with IEEE 802.3bt class 6 or UPOE+ power from upstream switch.

●      Perpetual PoE is supported on Cisco Catalyst 9200 Series switches, and maintains the PoE+ power during a switch reload. This is important for critical endpoints such as medical devices and for Internet of Things (IoT) endpoints such as PoE-powered lights, so that there is no disruption during a switch reboot.

●      Fast PoE: When power is restored to a switch, Fast PoE starts delivering power to endpoints without waiting for the operating system to fully load, thereby speeding up the time for the endpoint to start up.

Stacking

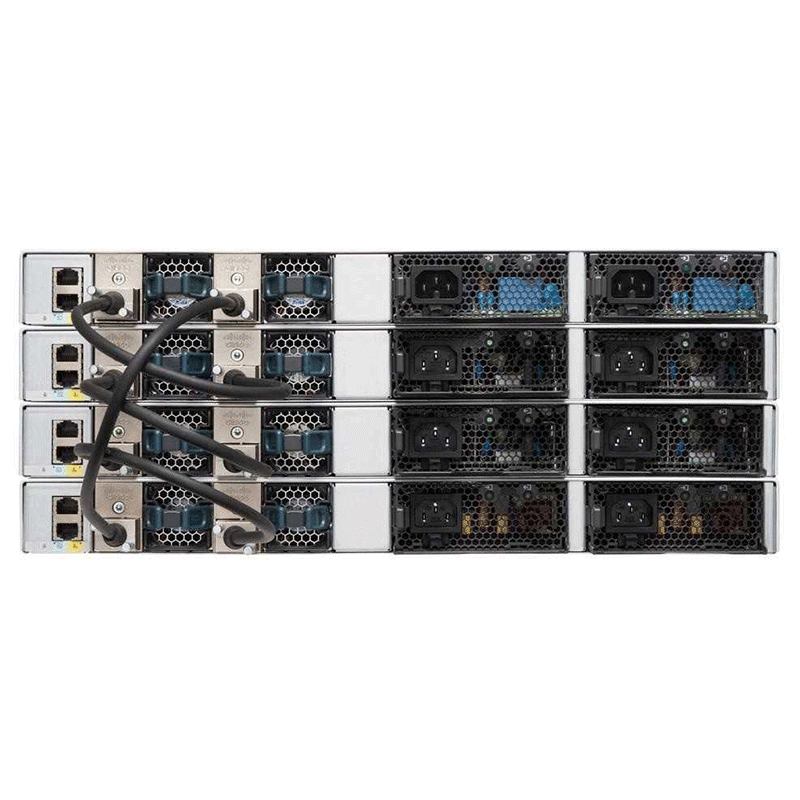

To stack Cisco Catalyst C9200L-24T-4G-E switches, you’ll need to use StackWise-80 technology, which enables high availability and simplified management. You need the following;

• C9200L-STACK-KIT: This includes the StackWise cables and adapters required for stacking.
• Compatible switches: All switches in the stack must be from the same model family (e.g., C9200L series).
• Stacking bandwidth: Up to 80 Gbps is supported for these switches

Fan

The Cisco Catalyst C9200L-24T-4G-E switch comes equipped with fixed redundant fans, meaning the fan modules are built-in and not field-replaceable like in some higher-end models. These fans are designed to provide reliable cooling and maintain optimal operating temperatures for the switch.

Fan Module Highlights (for Catalyst 9200 Series)

• Redundancy: N+1 redundancy ensures the switch can operate even if one fan fails.
• Hot Swappable: Fan modules can be replaced without powering down the switch.
• LED Indicator: A green LED lights up when the fan is functioning properly.
• Installation Tip: Replace a failed fan within 5 minutes to avoid overheating

 Warranty Coverage

The Cisco Catalyst C9200L-24T-4G-E switch typically comes with Cisco’s Enhanced Limited Lifetime Warranty (E-LLW) when purchased through authorized channels. Some vendors list the switch with a 1-year warranty by default, but this may vary depending on where and how it’s purchased.
